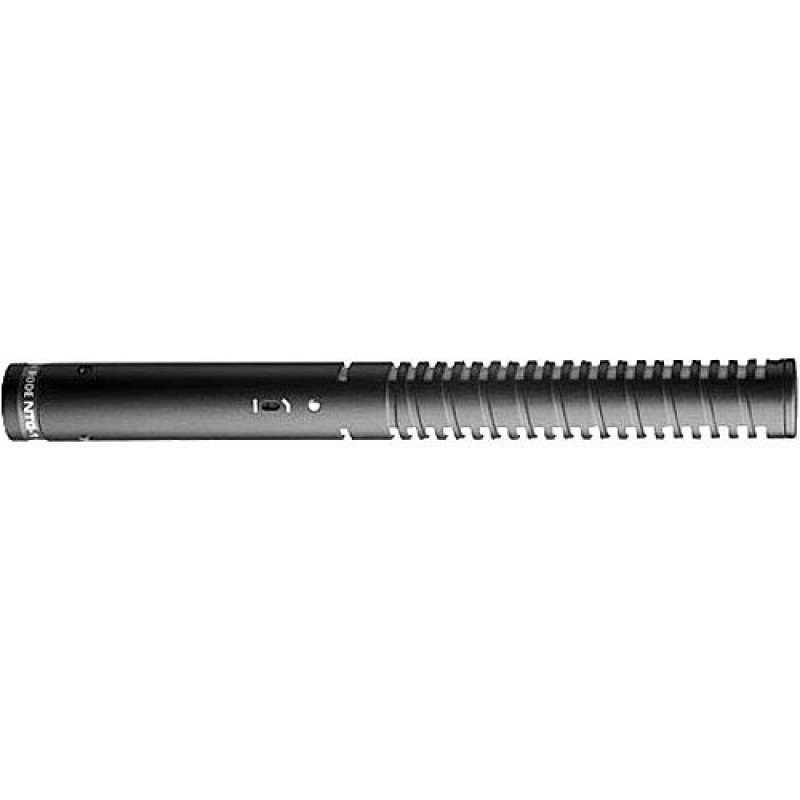

Rode NTG1 Condenser Shotgun Microphone

Click Image for Gallery

The Rode NTG1 Condenser Shotgun Microphone is designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low-noise output electronics and a wide frequency bandwidth, both of which attribute to the NTG1's broadcast sound quality. The supercardioid polar pattern and line-plus-gradient acoustic design effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio while using the NTG1 in noisy environments.

The NTG1 is powered with an external +48V phantom power source; the output is a standard 3-pin XLR male connector.

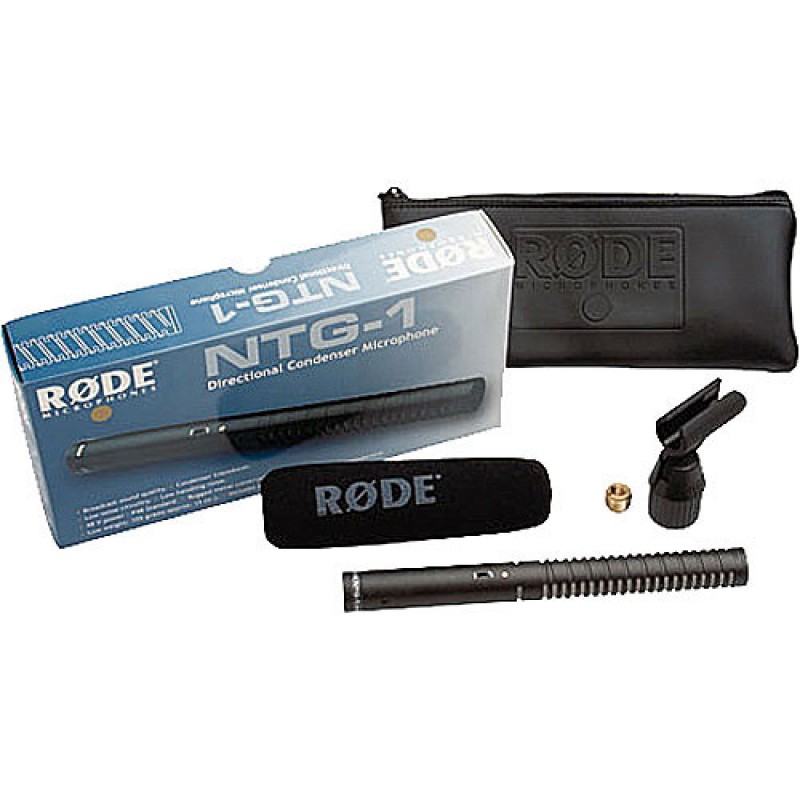

The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting yet durable enough to withstand the rigors of heavy road use. The Rode NTG1 is packaged with a microphone stand mount and windscreen.

Supercardioid Polar Pattern

The supercardioid polar pattern and line-gradient design principle allow for a narrow pick up pattern at the front of the capsule while minimizing noise at the off-axis (side) sections.

Lightweight Durable Construction

The NTG1 features a lightweight metal housing that is ideal for camera mounting.

Low Handling Noise

Low-noise output electronics provides a high signal-to-noise ratio. The NTG1 is designed to also reduce noise caused by handling, rigid mounting hardware, loose cabling, etc.

Transducer: Condenser

Polar Pattern: Supercardioid

Frequency Response: 20 Hz to 20 kHz

Dynamic Range (Typical): 121 dB (per IEC651, IEC268-15)

Signal-to-Noise Ratio: 76 dB (1kHz rel, 1Pa; per IEC651, IEC268-15)

Maximum Input Sound Level: 139 dB SPL (@ 1% THD into 1 kOhm)

Power Requirements: +48 V phantom, 44 V to 52 V

Output Impedance: 50 Ohms

Output Connectors: 3-pin XLR balanced

Pad: No

Low Frequency Roll-Off: Yes

Dimensions (LxDiameter): 8.54 x .87" / 217 x 22 mm
