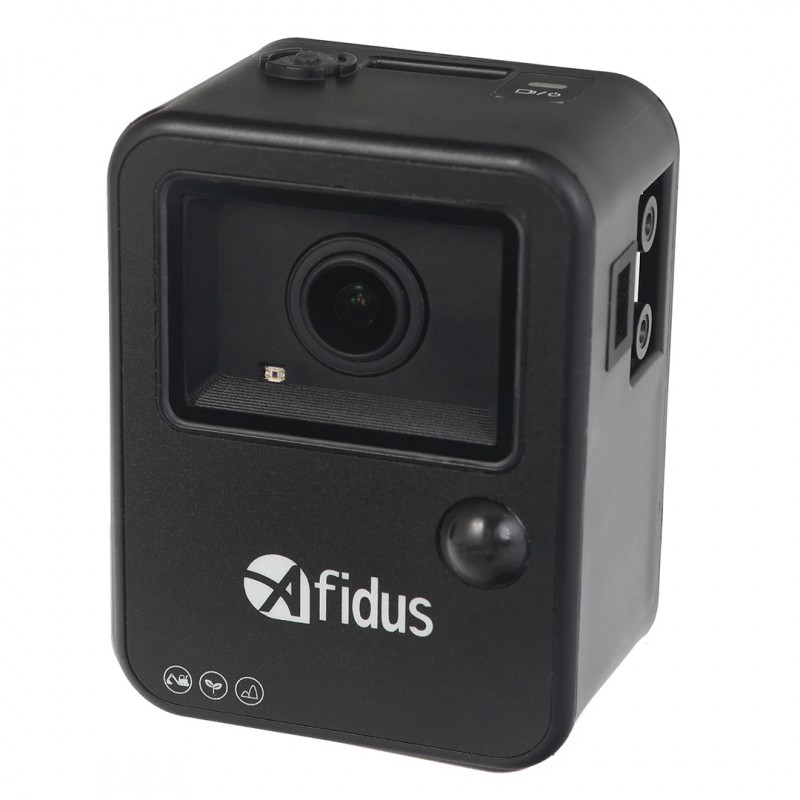

Afidus ATL-230 1080p Timelapse Camera

The time tested, award winning and very capable Afidus ATL-200S time lapse camera is now the ATL-230. The 230 offers new features and improvements while retaining what made the 200S the best choice in time lapse cameras over the past five years. The 16-35mm optical zoom lens, Sony Starvis sensor and MP4 output are the same. The housing is new, the app is new and new functionality has been added, including… power pack shutdown avoidance and hands free wi-fi activation which allows you to check your camera without climbing a ladder.

There is no comparable, more versatile, featured packed, simple and affordable camera solution… unless you need 4K… available in the Afidus 800i.

Afidus Exclusive FEATURE

Manual Controls

Manual controls are now available in the latest firmware update for the ATL-230 camera.

        Exposure: 1 - 1/8,000 second

        ISO: 100 -12,800

        Colour Temp: 1500-15,000 K

ATL-230

New Features

• Improved weather sealing

• Waterproof USB port

• Power pack shutdown avoidance

• Hot swappable power sources

• Recording paused if power lost, resumes when power restored

• Hands free wi-fi activation

• New SD card location

• New app

The 200S is now the new 230

Same Great Features + More!

• Full 1080 Sony HDR (high dynamic range) Sensor

• Optical Zoom Lens (16-35mm DSLR equivalent)

• Wi-Fi App Control with full screen preview

• Weather Resistant without a housing

• Timer with day of the week scheduling

• Motion Detection

• Pinch Zoom App Screen to confirm precise focus

• MP4 File Format

• Macro Focus an inch from the lens

• One Tap Auto Focus with manual precision

• Unattended Operation for weeks to months

Waterproof USB Port

The new ATL-230 case design is sealed to endure any weather. Even the USB port is waterproof allowing a worry free external power, battery or solar connection.

Silicone Sleeve

The ATL-230 includes a silicone sleeve for added protection which is not required for operation indoors or out.

New SD Location

Those who know… The ATL-230’s SD card slot has been moved to a more accessible location.

AE Optimizer Sensor

The Auto Exposure Optimizer photo sensor reads changing light levels to predict how the camera should react. For example, during sunset, fully automatic cameras try to maintain brightness as the scene gets darker. Often, this results in flickering exposures and the camera trying to keep the scene bright. AE Optimizer realizes the scene is getting darker and the exposure is adjusted to follow the darkness with greatly reduced flicker.

Afidus Exclusive Feature - Image Alignment

Image alignment is a unique tool only found in Afidus cameras. Removing the card to download or changing batteries may require moving the camera. Image alignment builds a wireframe overlay based upon a snapshot taken before the camera was moved. With a visual reference it is easy to reposition the camera for seamless capture. Screen capture shown is from a 200S camera, the ATL-800 has the same functionality with a different app interface.

Power Pack Shutdown Avoidance

Afidus cameras conserve batteries by requiring very little power between frames and outside the daily schedule hours. Most external USB power packs automatically turn off when not actively charging. For example, using a power pack to charge a phone, once the phone is charged the power pack shuts down. In the past, users had limited options for always on power packs. The ATL-230 has Power Pack Shutdown Avoidance, allowing you to use any USB battery supply. There are three setting options which trigger the battery pack, preventing auto shutdown.

Exclusive New Feature

Remote Wi-Fi Activation

A solution for checking Inconveniently mounted cameras. There is no longer a need for a ladder or lift for a camera check.

The Afidus 230 camera will look for a wi-fi network at a scheduled time every day. This allows an onsite person to check the camera status, make setting adjustments and even download to their phone. The feature is also intended to allow convenient access to cameras placed in a location that may not be easily accessible. For example, checking battery status... rather than needing a ladder or aerial lift to access the camera, a status check could be done from the ground.

Afidus Exclusive Feature

Advanced File Protection

The Afidus camera offers piece-of-mind and confidence with a very unique file protection and recovery feature. The image shows SD card files, notice the bottom. There is an MP4 file with 481 MB of content, however, due to abrupt loss of power the MP4 file is corrupt. File recovery software will not repair the file, but there is no concern. Insert the card into the camera, turn the camera on and the associated IDX file will finalize and repair the MP4.
