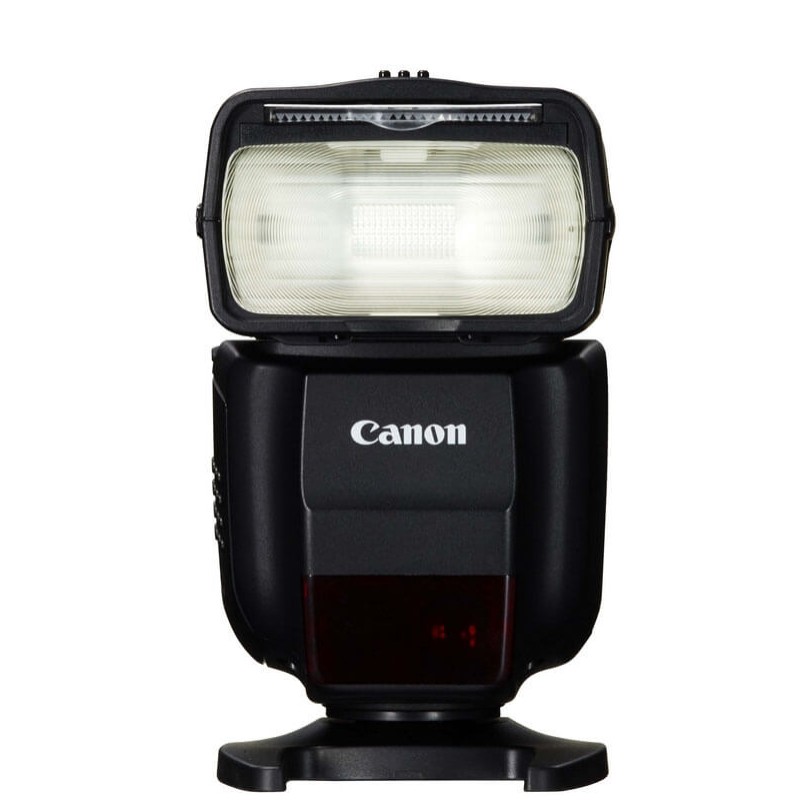

Canon Speedlite 430EX III-RT
Canon radio flash capabilities are trickling down from their flagship model with the integration of a 2.4 GHz wireless triggering system with master and slave capabilities in the mid-range Speedlite 430EX III-RT. Much like its predecessor, the E-TTL / E-TTL II unit has a guide number of 141' at ISO 100 and 105mm along with a zoom range of 24-105mm and a wide panel that extends coverage down to 14mm. Bounce has been expanded with the ability to rotate 150° right and 180° left as well as tilt upwards 90°. Enhancing operation are a dot-matrix LCD and a Multi Dial for smooth maneuvering of the menu settings.
In addition to the newly implemented radio system for wireless flash, optical slave transmission is still available for greater functionality. The 430EX III-RT's electronics have been sped up with a faster recycle time of 0.1 to 3.5 seconds along with a Quick mode that shortens this to just 2.5 seconds. Also, it offers enhanced Flash Exposure Compensation and Light Distribution settings for making very specific adjustments to the output settings. Versatility is still key with this compact unit, offering high-speed, 1st and 2nd curtain sync modes along with a variety of custom functions for setting the Speedlite up exactly as you need. A color filter and bounce adapter are included as well for adjusting the color temperature and brightness of the flash for more balanced lighting. And, it runs on 4 AA batteries.
Key Features
- Effective flash range of 2.3 to 77.4'
- Exposure compensation of ±3 EV in 1/3 or 1/2 step increments
- Light Distribution settings allow for Standard, Guide Number Priority, and Even Coverage settings
- Radio master and slave functionality allows for the use of up to 15 flashes set up in 15 channels and 5 groups up to 98.4' away
- Using optical transmission it can be set as a slave with an unlimited number of flashes within 4 channels and 3 groups
- 10 custom Functions and 8 personal Functions are available for dialing in specific settings

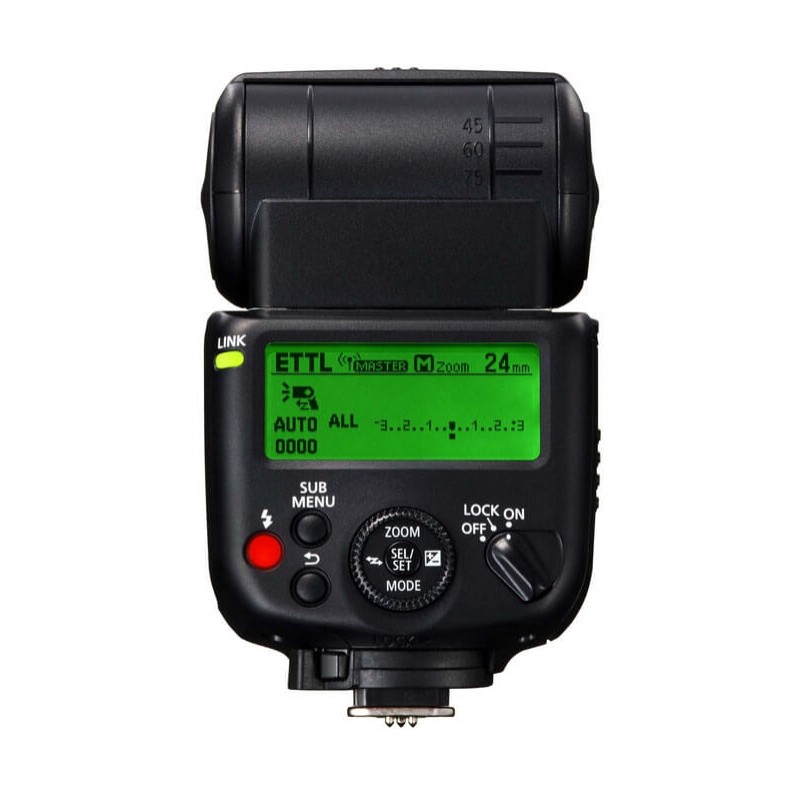

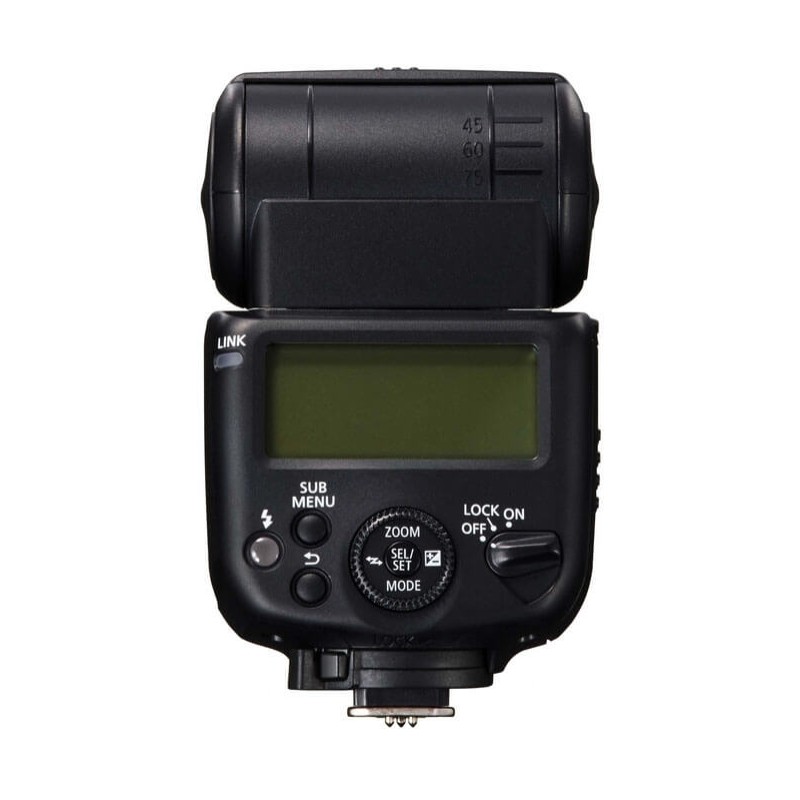

- LCD panel on rear for viewing and changing settings
- AF assist beam with range of up to 13.1'
- Fresh batteries will provide approximately 180 full-power flashes
- Metal locking foot
|
POWER
|
|
| Guide No. (ISO100).meters | 43 (105mm) |
|
ZOOM
|
|
| Zoom head | Yes |
| focal length coverage | 24-105mm |
| Coverage with wide panel | 14mm |
| Auto zoom for sensor size | Yes |
|
FLASH MODES
|
|
| Auto exposure control | E-TTLII/E-TTL |
| High speed sync (FP) | Yes |
| Manual / output settings | Yes - 1/1- 1/128 |
| Manual steps | 1/3 step |
|
FLASH-RELATED FUNCTION
|
|
| FE lock | Yes |
| Flash exposure compensation | Yes |
| Flash Exposure bracketing | No |
| Second-curtain flash sync | Yes |
| Modelling flash | Yes |
| Colour temperature info communication | Yes |
|
WIRELESS FLASH
|
|
| Transmitter | Yes |
| Transmission type | Radio |
| Signal range (Infra-red/Radio) | Indoors: 12-15m / 30m |
| Outdoors: 8-10m / 30m | |
| Slave function | Infra-red/Radio |
| Master function | Radio |
| No of groups (Optical/Radio) | - / 5 |
| No of channels (Optical/Radio) | - / 15 |
| Remote Shutter Release | Yes |
|
FLASH HEAD MOVEMENT
|
|
| Up | 45, 60, 75 and 90° |
| Left | 60, 75, 90, 120, and 150° |
| Right | 60, 75, 90, 120, 150 and 180 ° |
|
AF ASSIST
|
|
| AF-assist beam | Yes |
| Number of AF points supported | 1 |
| AF-assist beam type | Infra-red / flash strobe |
|
POWER SOURCE
|
|
| Battery | 4 x AA batteries |
| Minimum recycling time * | Approx. 3.5 sec |
| External power supply | No |
|
CONSTRUCTION
|
|
| Dust and water resistance | No |
| Mounting foot material | Metal |
|
MISC.
|
|
| Custom function | 10 (8 personal functions) |
| Flash settings from camera menus ** | Yes |
| External flash exposure sensor | No |
| PC terminal | No |
| Compatible Accessories | Off-camera shoe cord OC-E3 |
| Bounce adapter SBA-E2 | |
| Color filter/Bounce adapter holder | |
| Color filter SCF-E2 | |
| Dedicated flash bracket | No |
|
DIMENSIONS & WEIGHT
|
|
| Size (W x H x D), mm | 70.5 x 113.8 x 98.2 |
| Weight (Excluding batteries), grams | 295g |
| Working temperature range | 0 °C - 45 °C / 32 °F - 113 °F |
| Working humidity | 85 % or less |
