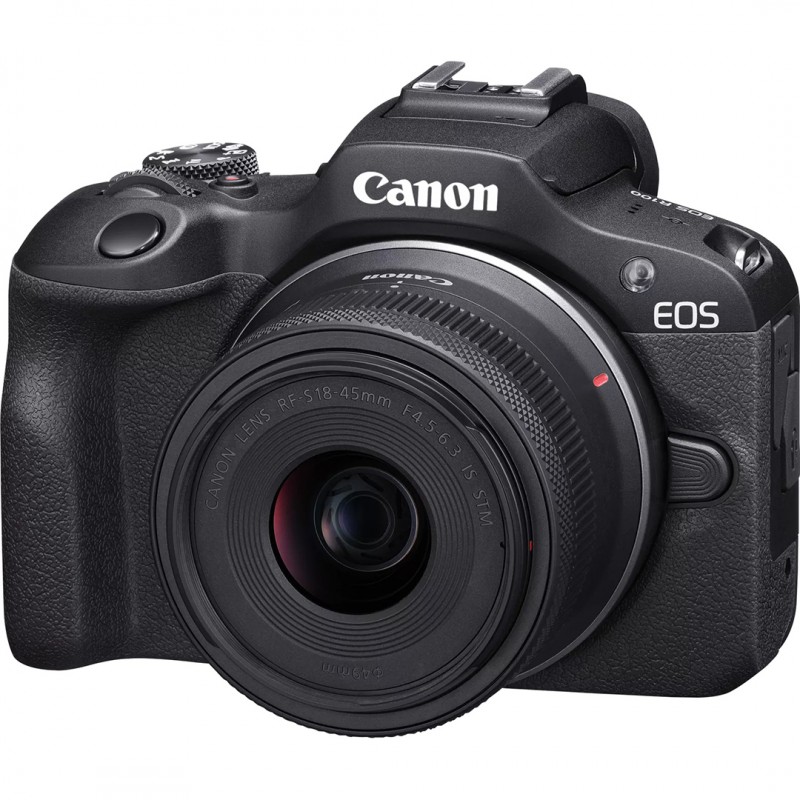

Canon R100 and RF-S 18-45mm F4.5-6.3 IS
Do your memories justice with the Canon EOS R100, a modern day essential that’s always at the ready to preserve life’s precious moments. It provides powerful features in a compact body and can be paired with a wide range of lenses to achieve excellent image and video quality. Whether it’s to record a family event or a holiday, this EOS R mirrorless camera captures outstanding details thanks to its large 24.1 MP APS-C imaging sensor and Dual Pixel CMOS Auto Focus. Get the effect you want effortlessly with intuitive controls and Creative Assist. Stay connected and share your images with family and friends thanks to Bluetooth¹ and high-speed WiFi¹ transfer.
Capture lifelong memories
Enjoy crisp quality thanks to the ultra-high definition 4K video recording² and a large 24.1 MP APS-C imaging sensor which provides great low light performance and genuine control over the depth of field.
Enjoy pin-sharp precision
The powerful Dual Pixel CMOS Auto Focus detects the person in frame. Combine with continuous shooting³ to capture the moment right when it happens.
Get creative, effortlessly
With Creative Assist, you can pick your desired effects and easily make changes to lighting, colour, background blur and more, achieving outstanding results.
Stay connected
Link the EOS R100 to your smartphone using the Camera Connect app to download your photos and videos. Easily share your memories with friends and family, post on your social media and store on the cloud.
Grab and go
Compact and lightweight, the EOS R100 is small enough to be taken anywhere you go and always have at the ready.
Dimensions: 116.3 x 88.1 x 58.7mm
Upgrade from your phone
Get shallower depth of field and achieve proper bokeh with a sensor that’s several times larger than on a smartphone.

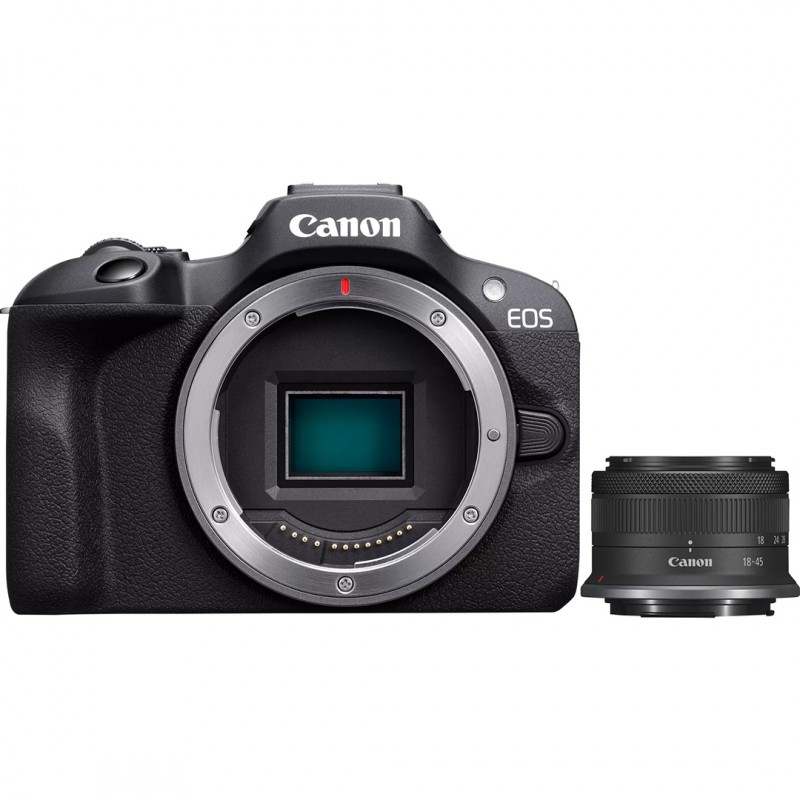

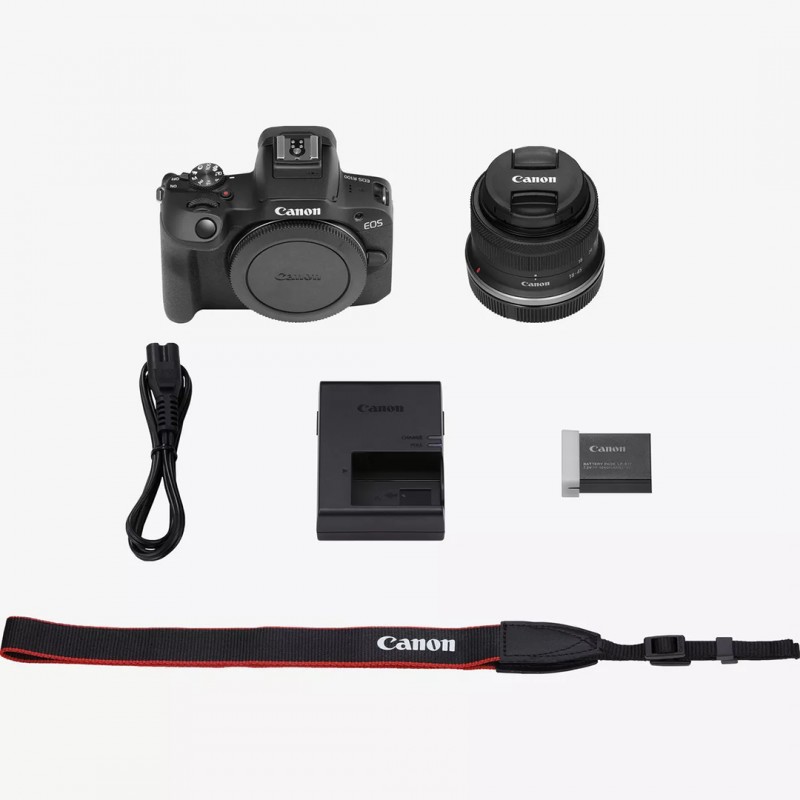

Single Lens Kit
This kit is supplied with one RF-S lens. The RF-S 18-45mm is a lens that lets you embrace your creativity.
Image Sensor
Type 22.3 x 14.9mm CMOS
Effective Pixels Approx. 24.1 megapixels
Total Pixels Approx. 25.8 megapixels
Aspect Ratio 3:2
Low-Pass Filter None
Sensor Cleaning None
Colour Filter Type RGB Primary Colour
Sensor Shift-IS No
Image Processor
Type DIGIC 8
Lens
Lens Mount RF
Compatibility RF, RF-S (EF and EF-S lenses compatible via mount adapter)1
Focal Length Equivalent to 1.6x the 35mm focal length of the lens
Image Stabilisation Optical stabilisation with lenses featuring IS
Movie Digital IS: Off / Enabled / Enhanced2
Focusing
Type Dual Pixel CMOS AF System
Contrast detection method is used during 4K Movie Servo AF
Maximum AF Zones (Stills / Movies) 143 / 1173
AF System / Points Stills: Maximum 3975 positions
Video: Maximum 3375 positions
Maximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings.
Max 25 frames in Zone AF [1]
Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent)
AF Working Range EV -4 - 18 / EV -2 - 184
AF Modes One-Shot AF and Servo AF
AF Point Selection Face+ Tracking
Spot AF
1-point AF
Zone AF
Stills: Maximum 3975 positions
Video: Maximum 3375 positions
Maximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings.
Max 25 frames in Zone AF [1]
Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent)
AF Tracking Humans (Eyes/Face/Head/Body)
AF Lock Locked when shutter button is pressed half way or customisable AF Lock Button
AF Assist Beam via LED assist beam
Manual Focus With RF lenses: Via dedicated AF/MF switch on lens where available, or in menu
With EF & EF-S lenses - Select via AF/MF switch on lens
MF Peaking available
AF+MF available (Manual focus adjustment after One-Shot AF)
Magnify image available during MF (3-10x, in 0.1x increments)5
Focus Bracketing Not provided
Exposure Control
Metering Modes Real-time metering from the image sensor
(1) Evaluative metering (384 zones, 24x16)
(2) Partial metering at centre (approx. 5.8% of Live View Screen)- stills only
(3) Centre weighted average metering
(4) Spot metering (approx. 2.9% of Live View Screen)
Partial and spot metering not available in movie
Metering Brightness Range Still image: EV -2 - 206
Movie: EV 0 - 20
AE Lock Auto: In One-shot AF mode, exposure is locked as soon as subjects are in focus
Manual: By AE lock Button in creative zone or movie modes
Exposure Compensation +/-3 EV in 1/3 stop increments
AEB 3 shots, +/- 2 EV, 1/3-stop increments
Anti-flicker Shooting Yes. Flicker detected at a frequency of 100 Hz or 120 Hz High frequency anti-flicker shooting not provided7
ISO SensitivityOpen Normal ISO speed: ISO 100-12800 in 1/3 or 1-stop increments
Expanded ISO speed: H (equivalent to ISO 25600)8
Shutter
Type Electronically controlled focal-place shutter (Rolling shutter, using the image sensor9). Electronic first curtain, mechanical 2nd curtain10
Speed 30 - 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
Shutter Release Soft-touch electromagnetic release
White Balance
Type Auto white balance with the imaging sensor
Settings AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting White balance compensation:
1. Blue/Amber +/-9
2. Magenta/Green +/-911
Shift Blue/Amber +/-9 levels
Magenta/ Green +/-9 levels12
Custom White Balance Yes, select an image on a card for use as a custom white balance
WB Bracketing +/- 3 levels, single level increments
Viewfinder
Type 0.39-type OLED Electronic Viewfinder
Dot Count Approx. 2,360,000 dots
Coverage (Vertical/Horizontal) Approx. 100%
Magnification Approx. 0.95x
Eyepoint Approx. 22mm
Dioptre Correction Approx. -3.0 to +1.0 m-1 (dpt)
Viewfinder Information Viewfinder sensor: provided
Vertical display for Stills only. Exposure Simulation
'Customisable and toggle via [INFO] Button
(1) Liveview image with exposure info
(2) Liveview image with basic info
(3) Liveview image with full info
Customisable settings:
Grid overlay (x3 formats), Histogram (Brightness/ RGB)
Viewfinder Brightness: Manually adjustable 1-5
Depth of Field Preview Yes
Eyepiece Shutter No
LCD Monitor
Type 7.5 cm (3.0”) LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots.
Coverage Approx. 100%
Brightness Adjustment Adjustable to one of seven levels
Touch Screen Operations No
Display Options Customisable and toggle via [INFO] Button
(1) Liveview image with exposure info
(2) Liveview image with basic info
(3) Liveview image with full info
Customisable settings:
Grid overlay (x3 formats), Histogram (Brightness/ RGB)
Flash
Built-in Flash GN (ISO 100, meters) 6
Built-in Flash Coverage Approx. 18mm angle of view
Built-in Flash Recycle Time Approx. 5 seconds
Modes Auto
Fire
Off
E-TTL II flash metering (Evaluative (Face Priority) / Evaluative / Average)
Red-Eye Reduction Yes
X-Sync 1/250 sec
Flash Exposure Compensation +/- 2 EV in 1/3 increments
Flash Exposure Bracketing No
Flash Exposure Lock Yes
Second Curtain Synchronisation Yes
Multi-Function Shoe / HotShoe / PC Terminal 5-pin shoe only
External Flash Compatibility E-TTL II with EX and EL series Speedlites, wireless multi-flash support20
External Flash Control Via camera setting/ flash setting menu
Shooting
Modes Stills:
Scene Intelligent Auto
Hybrid Auto
SCN Special Scene Modes (x10)
- Portrait
- Landscape
- Sports
- Panning
- Close-up
- Food
- Night Portrait
- Handheld Night Scene
- HDR Backlight Control
- Silent shutter mode21
Creative Filters
- Grainy B/W
- Soft focus
- Fish-eye effect
- Water painting effect
- Toy camera effect
- Miniature effect
- HDR art standard
- HDR art vivid
- HDR art bold
- HDR art embossed22
P (Program AE)
Tv (Shutter-priority AE)
Av (Aperture-priority AE)
M (Manual exposure, bulb exposure)
Movies:
Movie auto exposure
Movie manual exposure
Picture Styles Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space sRGB and Adobe RGB
Image Processing Highlight Tone Priority (standard and enhanced)
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings + Multi Shot NR)
Lens peripheral illumination correction
Chromatic aberration correction
Diffraction correction
Digital Lens Optimizer (DLO)
Creative Assist:
Presets
Background Blur (5 settings)
Brightness (19 levels)
Contrast (9 levels)
Saturation (9 levels)
Colour Tone 1 & 2 (19 levels)
Monochrome (Off/Black and white/Sepia/Blue/Purple/Green)
Drive Modes Single Shooting
Continuous Shooting
Self-timer: 10 sec. / remote control
Self-timer: 2 sec. / remote control
Self-timer: continuous shooting
Continuous Shooting One shot AF: Max. Approx. 6.5 shots/sec with Electronic 1st-curtain shutter, speed maintained for 97 JPEG(All sizes) or 6 RAW, 17 C-RAW, or RAW + L JPEG: 6, C-RAW + L JPEG: 13 images.23
Servo AF: Max. Approx. 3.5 shots/sec.
Interval Timer No
File Type
Still Image Type JPEG: 8 bits, Standard / Fine: (Exif 2.31 compliant) / Design rule for Camera File system (2.0)
RAW: RAW, C-CRAW (CR3 14 bits)
Digital Print Order Format [DPOF] Version 1.1 compliant24
RAW+JPEG Simultaneous Recording
Yes, RAW + various JPEG compression possible
Image Size RAW / C-RAW:
24.0 megapixels (6000 x 4000)
JPEG 3:2:
L 24 megapixels (6000 x 4000)
M 10.6 megapixels (3984 x 2656)
S1 5.9 megapixels (2976 x 1984)
S2 3.8 megapixels (2400 x 1600)
JPEG 4:3:
L 21.3 megapixels (5328 x 4000)
M 9.5 megapixels (3552 x 2664)
S1 5.3 megapixels (2656 x 1992)
S2 3.4 megapixels (2112 x 1600)
JPEG 16:9:
L 20.2 megapixels (6000 x 3368)
M 8.9 megapixels (3984 x 2240)
S1 5.0 megapixels (2976 x 1680)
S2 3.2 megapixels (2400 x 1344)
JPEG 1:1:
L 16.0 megapixels (4000 x 4000)
M 7.1 megapixels (2656 x 2656)
S1 3.9 megapixels (1984 x 1984)
S2 2.6 megapixels (1600 x 1600)25
Folders New folders can be created and selected
File Numbering (1) Continuous, Auto Reset
(2) Manual Reset
EOS Movie
Movie Type MP4: MPEG-4 AVC/H.264, Audio: AAC
Movie Size 4K UHD- 3840 x 2160, 23.98 / 25 fps, IPB (Standard), AAC
Full HD - 1920 x 1080, 59.94 / 50 / 29.97 / 25 / 23.98 fps, IPB (Standard), AAC
HD- 1280 x 720, 59.94 / 50 fps, IPB (Standard), AAC
High Frame Rate movies- 1280 x 720, 119.88 / 100 fps, IPB (Standard), No audio
Time-lapse movies- 3840 x 2160 / 1920 x 1080, 29.97 / 25 fps, All-I, No audio
Miniature effect movies- 1920 x 1080, 29.97 / 25 / 23.98 fps, IPB (Standard), No audio26
Colour Sampling (Internal Recording) 4K / Full HD: YCbCr4:2:0 8-bit
Canon Log Not supported
Movie Length Max duration 29min 59sec
Max file size:
SDXC: exFAT: Unlimited
SDHC: FAT32: 4 GB
SD: FAT16 / FAT12: 2GB
High Frame Rate Movie HD 1280 x 720, at 100 or 119.88 fps
Recorded aa 1/4 speed slow motion movie
Frame Grab
