Canon R5 Mirrorless Camera Body Only
Product Description:
A new era in image quality
New standards in high-resolution stills, and phenomenal 8K video quality to match. The EOS R5 advances image quality to a whole new level for stills and movies with a blistering 20fps electronic shutter or 12fps mechanically. The EOS R5 is accomplished, refined and built for magnificence.
Be the filmmaker
Commit your best work to stunning 8K video and relish the prospect of exciting new possibilities for creative capture. Offering full sensor width 8K internal and external RAW recording at up to 29.97fps and 4K at up to 119.88fps* in either 4:2:2 10bit Canon Log or 4:2:2 10bit HDR PQ, EOS R5 allows you to fully expand the world of filmmaking and explore dynamic new ways of telling your story.
*External recording is available up to 4K 59.94 fps only
More than face value
Now everything comes into focus. With advanced animal subject-tracking AF, The EOS R5 is able to recognise dogs, cats and birds detecting either the body, face, or eye of the subject.
New standards instability
For the first time on any Canon camera, 5 axis In Body sensor movement Image Stabilisation is offered which works in harmony with Canon RF lenses to combine Optical and In-Body Image Stabilisation to provide the ultimate in shake free super-sharp images and movies.
Key features
- Full-frame 45 megapixel CMOS sensor and DIGIC X processor
- 5940 AF selectable positions, covering virtually 100% of the frame
- Up to 8-stop Image Stabiliser
- ISO 100-51,200
- 8K RAW – non-cropped, internal recording up to 29.97fps
- Non-cropped, internal recording 8K video capture – up to 29.97fps in 4:2:2 10-bit in Canon Log (H.265) or 4:2:2 10-bit HDR PQ (H.265)
- Non-cropped internal recording 4K video capture – up to 119.88fps in 4:2:2 10-bit in Canon Log (H.265) or 4:2:2 10-bit HDR PQ (H.265)
- 4:2:2 10-bit in Canon Log or 4:2:2 10-bit HDR PQ output via HDMI at 4K 59.94fps
- Dual Pixel AF is available in all video modes at all resolutions and frame rates
- 5 axis optical IBIS/ enabling Lens IS and camera IBIS to be combined

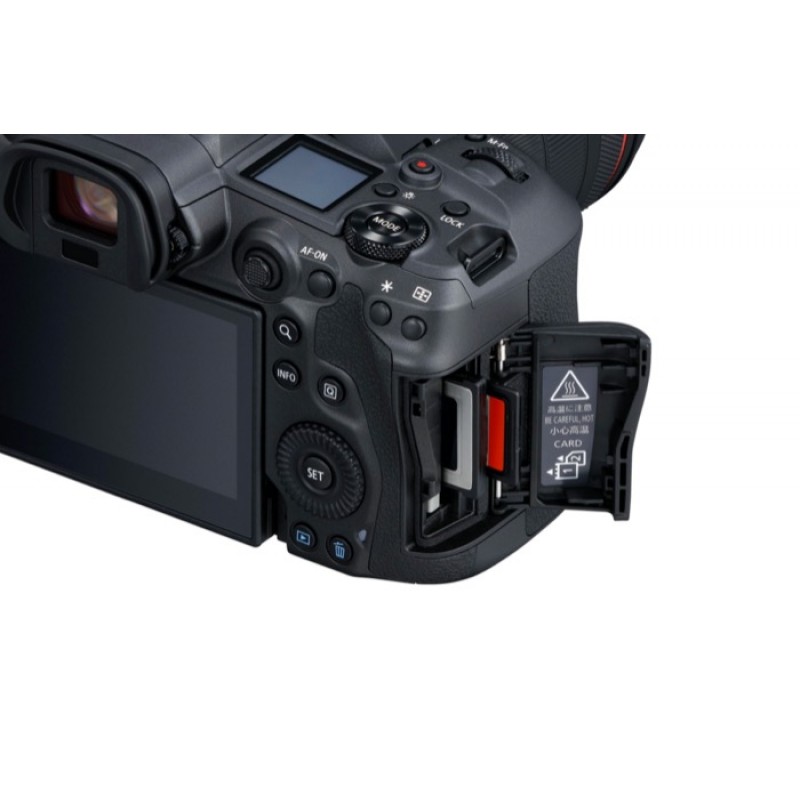

- Dual card slots – 1x CFexpress and 1x SD UHS-II
Imaging
Lens Mount Canon RF
Sensor Resolution Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Image Sensor 36 x 24 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
Additional Modes: 1.6x
*Additional Crop Occurs in Select Video Modes
Image Stabilization Sensor-Shift, 5-Axis
Built-In ND Filter No
Capture Type Stills & Video
Exposure Control
Shutter Type Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 1/2 Second
Bulb/Time Mode Bulb Mode
ISO Sensitivity Range Photo
100 to 51,200 (Extended: 50 to 102,400)
Video
100 to 25,600 (Extended: 51,200)
Metering Method Centre-Weighted Average, Evaluative, Partial, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range -3 to 20 EV
White Balance 2000 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting Up to 20 fps at Maximum Resolution for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay
Still Image Capture
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image File Format JPEG, Raw
Bit Depth 14-Bit
Video Capture
Internal Recording Modes Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
External Recording Modes 4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
ProResRAW 10-Bit via HDMI
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps
5088 x 2680 at 23.98/24.00/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support Yes
Gamma Curve Canon Log, Canon Log 3
Recording Limit 30-Minute Maximum
IP Streaming Yes
Built-In Microphone Stereo
Audio Recording AAC Audio
LPCM Audio
Interface
Media/Memory Card Slot Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O 1x Micro-HDMI Output
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O 1x USB-C Input
Other I/O 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
1x Canon N3 Remote Input
Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
Mobile App Compatible Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.) GPS
*Via Connected Smartphone

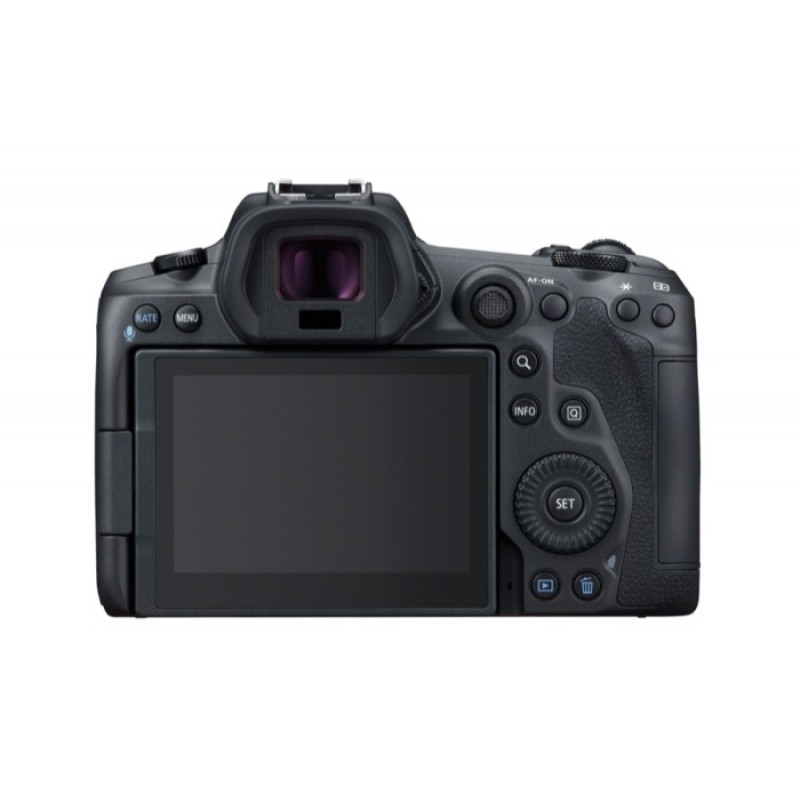

Monitor
Display Size 3.2"
Resolution 2,100,000 Dot
Display Type Free-Angle Tilting Touchscreen LCD
Secondary Display Top: Status Display
Viewfinder
Type Electronic (OLED)
Size 0.5"
Resolution 5,760,000 Dot
Eye Point 23 mm
Coverage 100%
Magnification Approx. 0.76x
Diopter Adjustment -4 to +2
Focus
Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points Phase Detection: 1053
Autofocus Sensitivity -6 to +20 EV
Flash
Built-In Flash/Light No
Maximum Sync Speed 1/250 Second
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection PC Terminal
General
Battery 1x LP-E6NH Rechargeable Lithium-Ion (Included)
Shoe Mount 1x Hot Shoe
Tripod Mounting Thread 1x 1/4"-20 Female (Bottom)
Material of Construction Magnesium Alloy
Operating Conditions 0 to 40°C up to 85% Humidity
Dimensions (W x H x D) 138 x 97.5 x 88 mm
Weight 650 g (Body Only)
738 g (With Battery, Recording Media)
