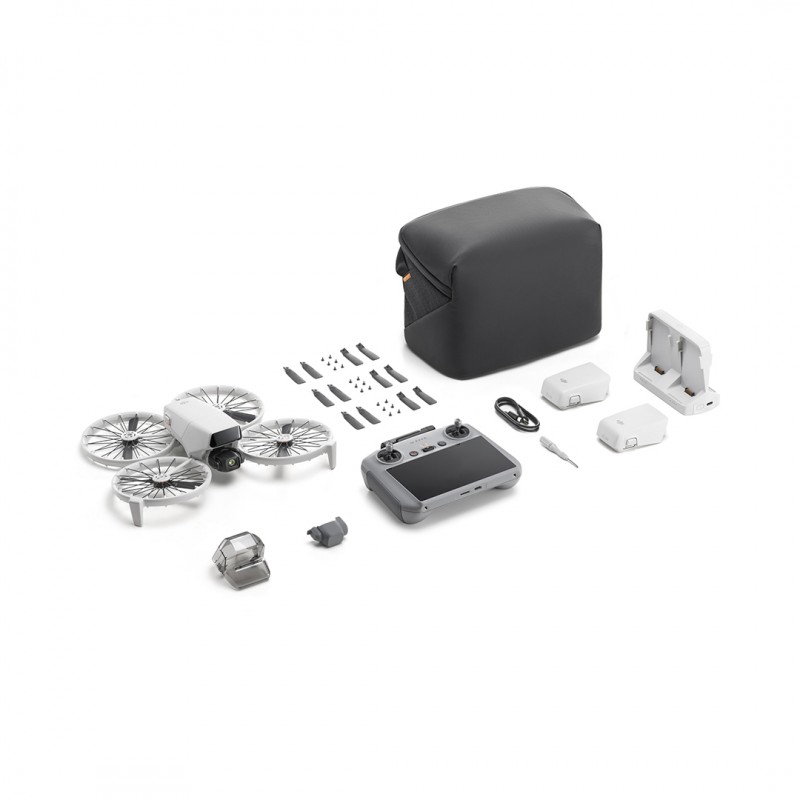

DJI Flip Fly More Combo (DJI RC 2)

DJI Flip     × 1

DJI RC 2 Remote Controller     × 1

Intelligent Flight Battery     × 3

Parallel Charging Hub     × 1

DJI Flip Shoulder Bag     × 1

Spare Propellers (Pair) (Screws Included)      × 3

Type-C to Type-C PD Cable     × 1

Gimbal Protector     × 1

Screwdriver     × 1

Aircraft

Takeoff Weight     ‌< 249 g

‌Standard aircraft weight (including the Intelligent Flight Battery and a microSD card). Actual product weight may vary due to differences in batch materials and other factors. Training or examination is not required for flying this product in most countries and regions. Always check local laws and regulations before use. Always check and strictly abide by local laws and regulations before flying.

Dimensions     Folded: 136×62×165 mm (L×W×H)

                            Unfolded: 233×280×79 mm (L×W×H)

Max Ascent Speed     5 m/s (Sport mode)

                                        5 m/s (Normal mode)

                                        2 m/s (Cine mode)

Max Descent Speed     5 m/s (Sport mode)

                                          5 m/s (Normal mode)

                                          1.5 m/s (Cine mode)

Max Horizontal Speed     At sea level, in windless conditions:

                                                    12 m/s* (Sport mode)

                                                    12 m/s (tracking status)

                                              At sea level, with 4 m/s tailwind, while flying in the same direction as the wind:

                                                    16 m/s* (Sport mode)

                                                    12 m/s (tracking status)

* Measured in a wind tunnel test environment with the aircraft taking off from an altitude of 0 m and ascending vertically by 1.5 m in Sport mode. Data is for reference only. Always pay attention to reminders on the camera view during your flight.

Max Take-off Altitude     3000 m

In a windless environment, a fully charged aircraft can take off from an altitude of 3000 m, ascend vertically by 500 m, and fly in Sport mode until the battery level drops to 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.

Max Flight Time     31 minutes

Measured when flying forward at a constant speed of 6 m/s in a windless environment 20 m above sea level, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.

Max Hovering Time     28 minutes

Measured when hovering in a windless environment 20 m above sea level, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.

Max Flight Distance     14 km

Measured when flying forward at a constant speed of 9 m/s in a windless environment 20 m above sea level, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.

Max Wind Speed Resistance     10.7 m/s (Level 5)

Operating Temperature     -10° to 40° C (14° to 104° F)

Global Navigation Satellite System     GPS + Galileo + BeiDou

Internal Storage     2 GB

Class     C0 (EU)

Camera

Image Sensor     1/1.3-inch image sensor

Lens     FOV: 82.1°

              Format Equivalent: 24 mm

              Aperture: f/1.7

              Focus: 1 m to ∞

ISO Range

Video     Normal/Slow Motion:

                        100-6400 (Normal)

                        100-1600 (D-Log M)


                        12MP Photo: 100-6400

                        48MP Photo: 100-3200

Shutter Speed      12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)

                                48MP Photo: 1/8000-2 s

Max Image Size     48MP Photo

                                        8064×6048

Still Photography Modes     Single Shot: 12 MP and 48 MP

                                                 Burst Shooting:

                                                    12 MP, 3/5/7 frames Automatic Exposure Bracketing (AEB):

                                                    12 MP, 3/5/7 frames at 2/3 EV step

                                                 Timed:

                                                    12 MP, 2/3/5/7/10/15/20/30/60 s

Photo Format     JPEG

                               DNG/RAW

Video Resolution      4K: 3840×2160@24/25/30/48/50/60/100fps

                                      FHD: 1920×1080@24/25/30/48/50/60/100fps

                                      2.7K Vertical Shooting: 1512×2688@24/25/30fps

                                      FHD Vertical Shooting: 1080×1920@24/25/30fps

Video Format     MP4

Max Video Bitrate     150Mbps

Supported File System     exFAT

Colour Mode     Normal

                             D-Log M

Digital Zoom     4K: 3x

                              FHD: 4x

                              2.7K Vertical Shooting: 3x

                              FHD Vertical Shooting: 4x

                              12 MP Photo: 3x

Gimbal

Stabilization     3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range     Tilt Axis: -130° to +63°

                                        Roll Axis: -47° to +47°

                                        Pan: -30° to +30°

Controllable Range     Tilt Axis: -90° to +35°

Max Control Speed (tilt)     100°/s

Angular Vibration Range     ±0.01°

Sensing

Sensing Type     Downward: one visual sensor and an infrared sensor, Forward: 3D Infrared Sensing System

Forward     3D Infrared Sensing System

                        Measurement Range: 0.3-8 m (reflectivity > 10%)

                        FOV: Horizontal 60°, Vertical 60°

Downward

                        Measurement Range: 0.3-8 m (reflectivity > 10%)

                        Precise Hovering Range: 0.5-10 m

                        FOV: Horizontal 60°, Vertical 60°

Video Transmission

Video Transmission System     O4

Live View Quality     Remote Controller:

                                         Up to 1080p/60fps

Operating Frequency     2.4000-2.4835 GHz

                                             5.170-5.250 GHz

                                             5.725-5.850 GHz

Transmitter Power (EIRP)     2.4 GHz:

                                                        <30 dBm (FCC)

                                                        <20 dBm (CE/SRRC/MIC)

                                                     5.1 GHz:

                                                        <23 dBm (CE)

                                                     5.8 GHz:

                                                        <33 dBm (FCC)

                                                        <14 dBm (CE)

                                                        <30 dBm (SRRC)

Max Transmission Distance (unobstructed, free of interference)     FCC: 13 km

                                                                                                                               CE: 8 km

                                                                                                                               SRRC: 8 km

                                                                                                                               MIC: 8 km

Max Transmission Distance (unobstructed, with interference)     Strong Interference (urban landscape): Approx. 1-2.5 km

                                                                                                                           Medium Interference (suburban landscape): Approx. 2.5-7 km

                                                                                                                           Low Interference (suburb/seaside): Approx. 7-13 km

Max Transmission Distance (obstructed, with interference)     Low Interference and Obstructed by Buildings: Approx. 0-0.5 km

                                                                                                                      Low Interference and Obstructed by Trees: Approx. 0.5-2 km

Max Download Speed     O4:

                                        DJI RC-N3 Remote Controller: 10 MB/s

                                        DJI RC: 10 MB/s

                                        Wi-Fi 5: 30 MB/s

Lowest Latency         Approx. 120 ms

Antenna     4 antennas (2.4 GHz: 1T2R; 5.2/5.8 GHz: 2T2R)

Wi-Fi

Protocol     802.11a/b/g/n/ac

Operating Frequency     2.4000 GHz-2.4835 GHz

                                             5.7250 GHz-5.850 GHz

Transmitter Power (EIRP)     2.4 GHz：

                                            <20 dBm（FCC/CE/SRRC/MIC）

                                                    5.8 GHz：

                                            <20 dBm（FCC/SRRC）

                                            <14 dBm （CE）

Effective Operating Range     50 m

Bluetooth

Protocol     Bluetooth 5.0

Operating Frequency     2.4000-2.4835 GHz

Transmitter Power (EIRP)     ＜10 dBm

Battery

Capacity     3110 mAh

Weight     Approx. 83.5 g

Nominal Voltage     7.16 V

Battery Type     Li-ion

Energy     22.3 Wh

Charging Temperature     5° to 40° C (41° to 104° F)

Charging Time      When Charging via Aircraft (30W max charging power):

                                    From 0% to 100%: Approx. 70 minutes*

                                 When Using the Battery Charging Hub for Charging One Battery (48W max charging power):

                                    From 0% to 100%: Approx. 45 minutes**

                                 When Using the Battery Charging Hub for Parallel Charging Two Batteries (65W max charging power):

                                    Two batteries from 0% to 100%: Approx. 70 minutes***

            * Using the DJI 30W USB-C Charger or a charger that supports the PD protocol with a power output higher than 30 W.

            ** Using the DJI 65W USB-C Charger or a charger that supports the PD protocol with a power output higher than 48 W.

            *** Using the DJI 65W USB-C Charger or a charger that supports the PD protocol with a power output higher than 65 W.

Battery Charging Hub     Input

                                        5 V, 4.3 A

                                        9 V, 4.3 A

                                        12 V, 4.3 A

                                        15 V, 4.3 A

Output (power accumulation)     Max 45 W

Output (charging)     15 V, 2 A

                                     12 V, 2 A

                                     9 V, 3 A

                                     5 V, 3 A

Rated Power     65 W

Charging Type     2 batteries charged simultaneously or in sequence

Compatibility     DJI Flip Intelligent Flight Battery

Charger     Recommended Charger

                            DJI 65W Portable Charger*

                            USB Power Delivery chargers

* When you charge the battery mounted to the aircraft, the maximum charging power supported is 30 W.

* When you charge the battery inserted into the Parallel Charging Hub, the maximum charging power supported is 65 W.

Storage

Recommended microSD Cards          Lexar Professional 1066x 64GB U3 A2 V30 microSDXC

                                                                    Lexar Professional 1066x 128GB U3 A2 V30 microSDXC

                                                                    Lexar Professional 1066x 256GB U3 A2 V30 microSDXC

                                                                    Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
