Elinchrom ELC Pro HD 1000 To Go Set EL20663.2

SPECIAL: Order any Rotalux Softbox with an Elinchrom Lighting kit and get 20% Discount on the Softbox and Speed Ring - call for details

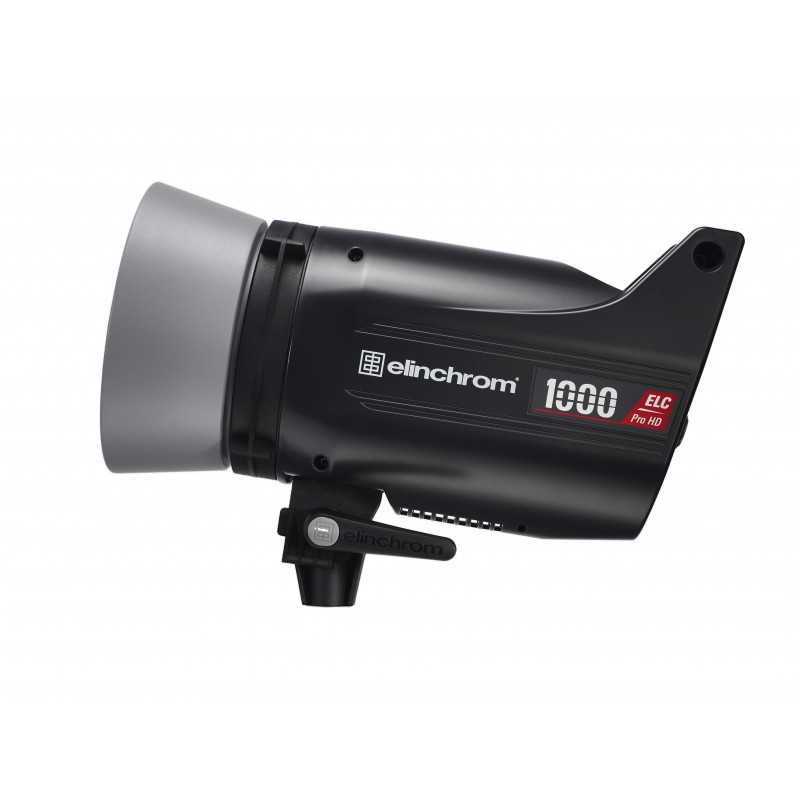

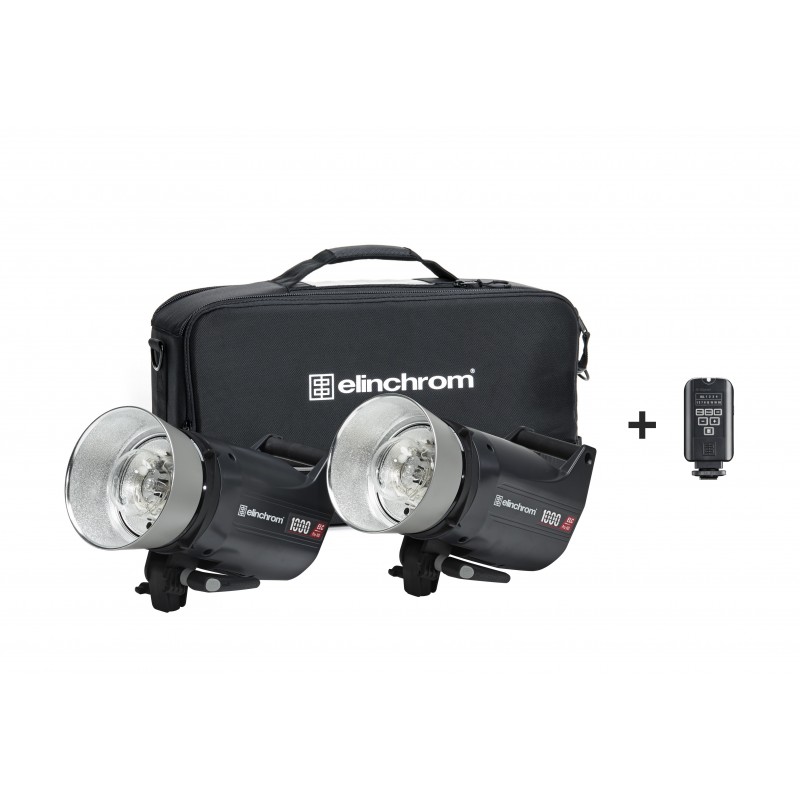

For professional studio use, Elinchrom have developed the high-end ELC Pro HD system; providing photographers with a competent, reliable, powerful head featuring a myriad of practical, creative features. The ELC 1000 boasts a recycling time of 1.2 seconds and a 1/5260second flash duration, while maintaining consistent colour temperature and flash power. Uniquely, the ELC Pro HD features an easy-to-read OLED display screen which indicates power, flash duration and other settings; navigated and controlled via jog-wheel. Several new shooting modes provide photographers with new artistic tools with which to explore their inventiveness, as can be seen in the product demonstration video. This kit features a pair of ELC Pro HD 1000 heads, along with reflectors, protective glass domes, reflectors, a sync cable, ProTec Location carry-bag, and an EL Skyport Plus Transmitter.

Key Features

• Built-in receiver for triggering and power control with the EL-Skyport Plus

• Intelligent pre-flash detector system

• User presets easily saved and recalled

• Power auto-dump

• Intelligent cooling fan

• Multi-voltage auto-detection: 90-270 V (excluding modelling lamp)

• Visual Flash Confirmation option

• Adjustable proportionality of the modelling lamp range

• Programmable ready beep tone

• Compatible with all accessories

• Centred 7 mm umbrella shaft compatible with the deflector set

• User replaceable plug-in flashtube


New Shooting Modes

The ELC features three exciting new shooting modes that will literally change the way you create.

• Sequence Mode - Allows you to sequentially trigger up to 20 ELCs, in bursts or as a continuous cycle, to utilise the high frame rate of your camera.

• Delayed Mode - Provides the option of first or second curtain sync and everything in-between, plus predictive synchronisation within a short sequence.

• Strobo Mode - Enables you to take a picture with stroboscopic effects within a single frame.


A powerful tool for the discerning photographer

The ELC Pro-HD Compacts 500 and 1000 are the world’s most complete, feature rich compact studio flash units. The result of over 50 years experience at the forefront of studio lighting technology. Designed and assembled at Elinchrom’s HQ in Switzerland the ELC benefits from the highest Swiss specification. Recycling times are lightning fast (0.6s / 1.2s to full power, ELC 500w / ELC 1000w) while Swiss precision guarantees consistency of power output and colour temperature, shot after shot. Furthermore the super fast flash durations (up to 1/5000s / 1/5260s, t0.5, ELC 500 / ELC 1000) enable you to freeze motion like never before. The ELC is the first unit to incorporate an OLED screen that displays every control for the most professional user experience. As well as Elinchrom’s stop based power scale, you will now be able to see the power in Joules, flash durations and many other settings. A jog wheel provides easy navigation of the new menu.

Why the ELC Pro HD?

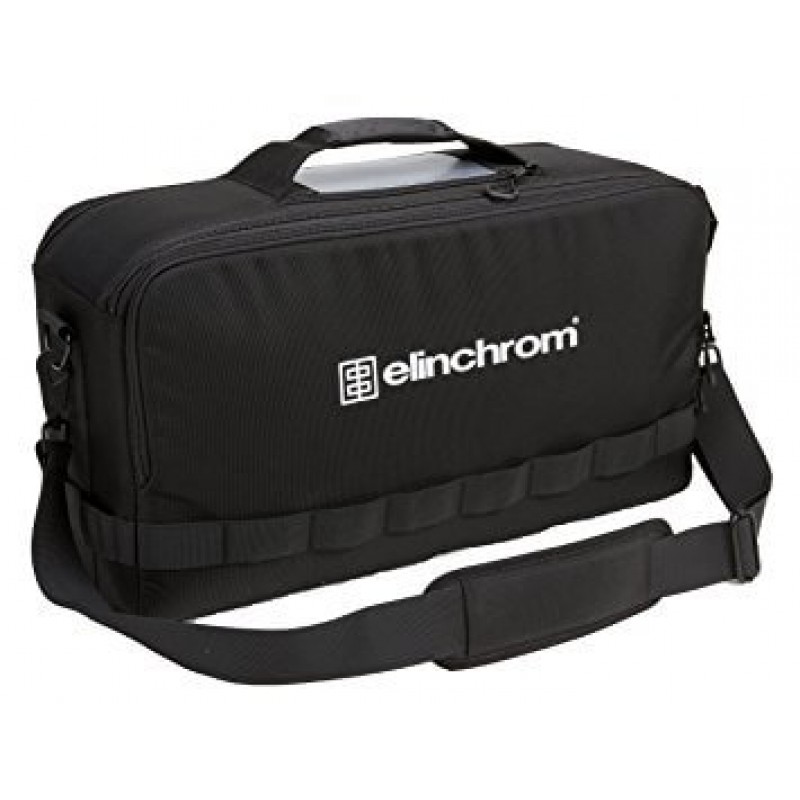

These compacts are the highest performing and most professional units on the market. The ELC Pro HD compact is Elinchrom’s latest unit. Available as either 500 Ws or 1000 Ws, the ELC Pro HD has lighting fast recycling times allowing photographers to experiment with the delay and photo burst function. The Protec location bag (EL33195) can be customized and reconfigured to fit photographer's equipment needs, while enabling quick and secure transportation from location to location.

• Shortest flash duration

• Fastest recycling time

• Best color and power accuracy
• Power range from 6 Ws to full power

• OLED display for intuitive control

• Creative Lighting Suite available

ELC PRO HD FIRMWARE / NEW OPTION - ENABLE / DISABLE FLASH BEFORE READY

Our ELC Pro HD users reported, that depending on the needs, they either require the fastest possible flash sequence (e.g. Strobo mode), or the best possible flash power accuracy for example for large series of pack shot photography, with priority on the exposure results. To satisfy both user groups we added value to the ELC Pro HD with the latest firmware V.25.17, which offers now the option to disable or enable Flash Before Ready.

 Flash Before Ready / Enabled

• Benefit: fast sequences and fast recycling times.

• Limitation: the exposure results may vary slightly depending on how fast the photographer will work.


 Flash Before Ready / Disabled

• Benefit: accurate exposures.

• Limitation: recycling times and the Strobo mode are slowing down.


 How to Update the ELC Pro HD

  *   Download the Updater: http://www.elinchrom.com/support_downloads.php?q=software+updater

  *   Use the latest USB RX Module: http://www.elinchrom.com/skyport/usb.html

  *   Switch off the ELC.

  *   Set the ELC to Firmware Update Mode: Press USER and ON button for a few seconds, the display shows the update mode.

  *   Start the updater and follow the displayed instructions.

  *   NOTE: The EL-Skyport software (Version 3.2.0.452) cannot be used to update the ELC firmware, use only the Updater!

 How to set Flash Before Ready - Enabled / Disabled

   1.  Switch off the ELC .

  2.  Press Centre Button (turn knob) together with the ON button, the display will show the Flash Before Ready status.

  3.  To enable or disable Flash Before Ready just repeat point 2.

ELC Pro HD - V.25.17

02.2018 - Release note for firmware 25.17

·         Faster response when Modeling state is changed via Skyport.

·         Added possibility to enable/disable flash before ready (when unit is OFF, press and hold ON + CENTER knob button until message is shown).

·         Renamed label skyport "channel" to "frequency".

http://www.elinchrom.com/support/firmware-release-notes.html#elc_pro_hd
