Elinchrom FIVE Single Head Kit EL20960.1
The transmitter will be automatically added to your cart at no cost.
Please specify your camera brand in the message box at checkout.
Available versions: Canon · Nikon · Sony · Fujifilm · Pentax
Always charged up for any adventure, inside or out.
The new Elinchrom FIVE with Active Charging lets you work in the studio while actively charging your battery, so you’re always ready for your next adventure. Unplug and work on location with up to 450 full-power flashes. The Elinchrom FIVE features a continuous running modelling light and lets you shoot longer, with quicker recycling times and no need to slow down.
Active Charging
Connect the Elinchrom FIVE to a power source and continue shooting while charging regardless of the battery’s power level.

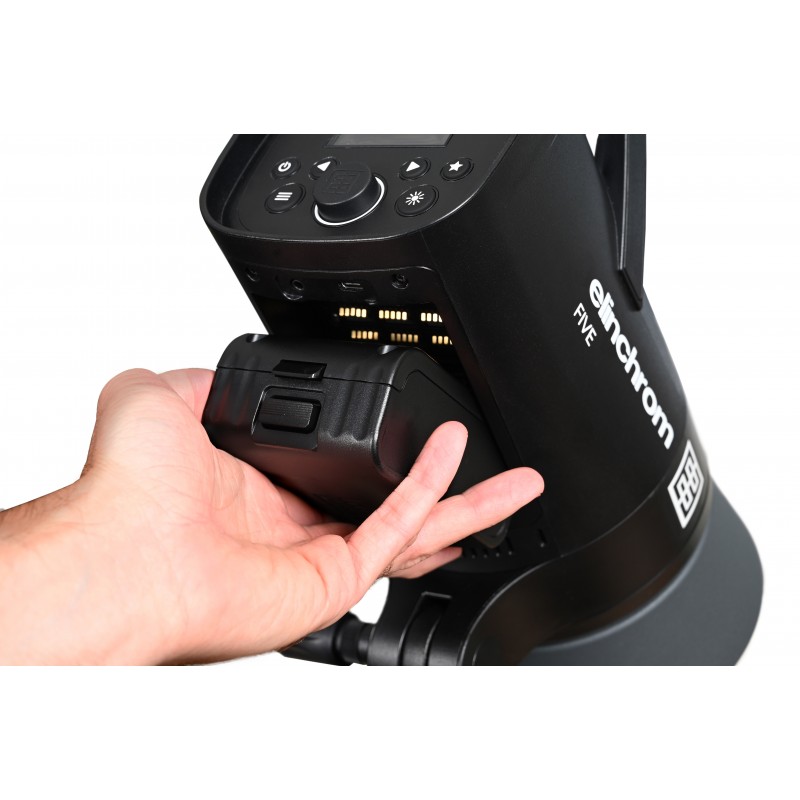

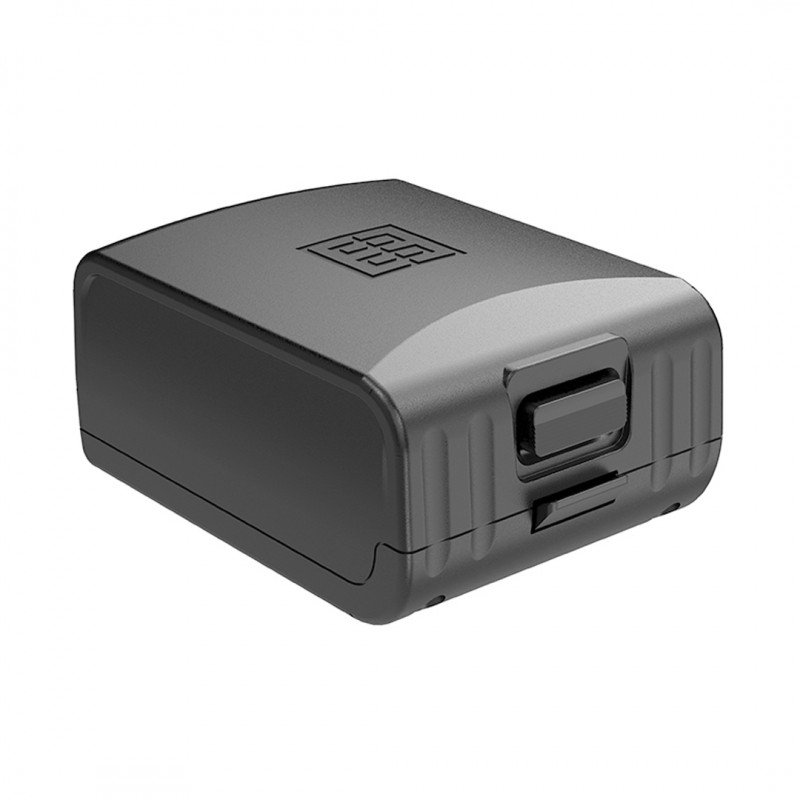

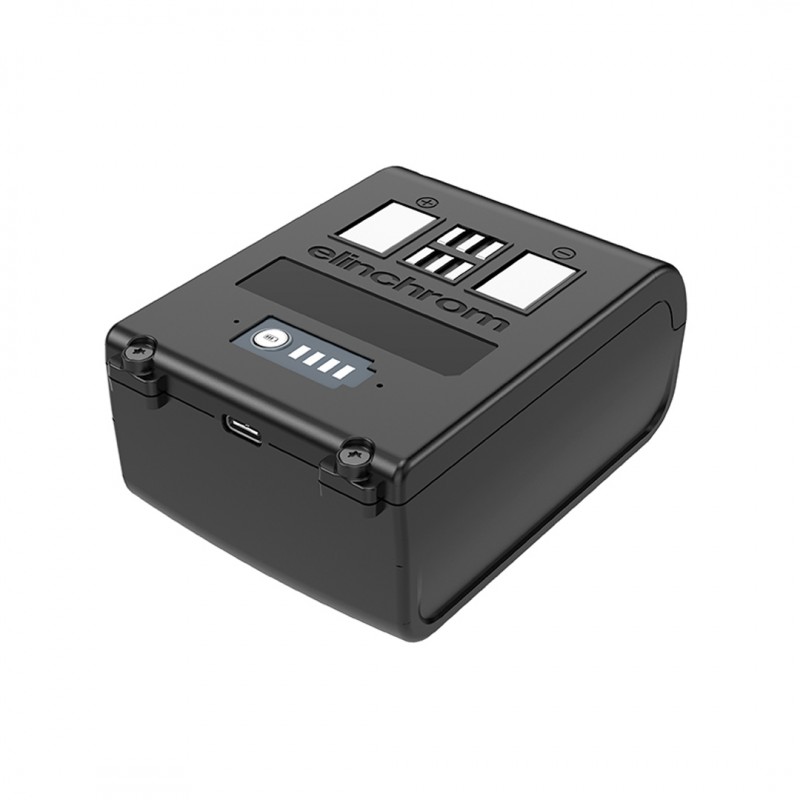

Detachable High Capacity Li-Ion Battery
Enables up to 450 full-power flashes on a single charge.
USB-C Charge Port
Charge the Elinchrom FIVE from any USB-C source without proprietary spare batteries or chargers.
Tough and Reliable
The FIVE is designed like a workhorse. Optimised cooling and electronics allows photographers to shoot at full power every 1.6 seconds without batting an eye.
Elinchrom Modifier Mount
Natively compatible with Elinchrom accessories. Plus, the comfortable grip makes it seamless to adjust your lighting.
Bicolour 26W LED Modelling Lamp
Adjustable Colour Temperature of 2700K to 6500K and an output of 4000 Lumens with a CRI 95.
Sync up to 1/8000s with HSS
Freeze motion, overpower ambient light and darken backgrounds.
TTL with Manual Lock
Enables a quick switch from TTL to Manual without losing exposure settings.
Smart Pro-Active Cooling
The Elinchrom FIVE learns your shooting style and adapts its cooling cycle around it.
Built-in Bluetooth
Adjust settings and control via the Elinchrom Studio App without the need for the Elinchrom Bridge.
Never lose momentum
With Active Charging, the Elinchrom FIVE can be connected to any USB-C power source and continue shooting while charging regardless of the battery’s power level, keeping your workflow uninterrupted.
Tough and reliable
Elinchrom’s FIVE is built to withstand whatever you or Mother Nature throw at it. With a recycling time of 1.6 seconds to full power and optimised cooling, the FIVE will never let you down.
Power to shoot longer
With 450 full power flashes, the Elinchrom FIVE ensures you have plenty of power on location
A familiar face

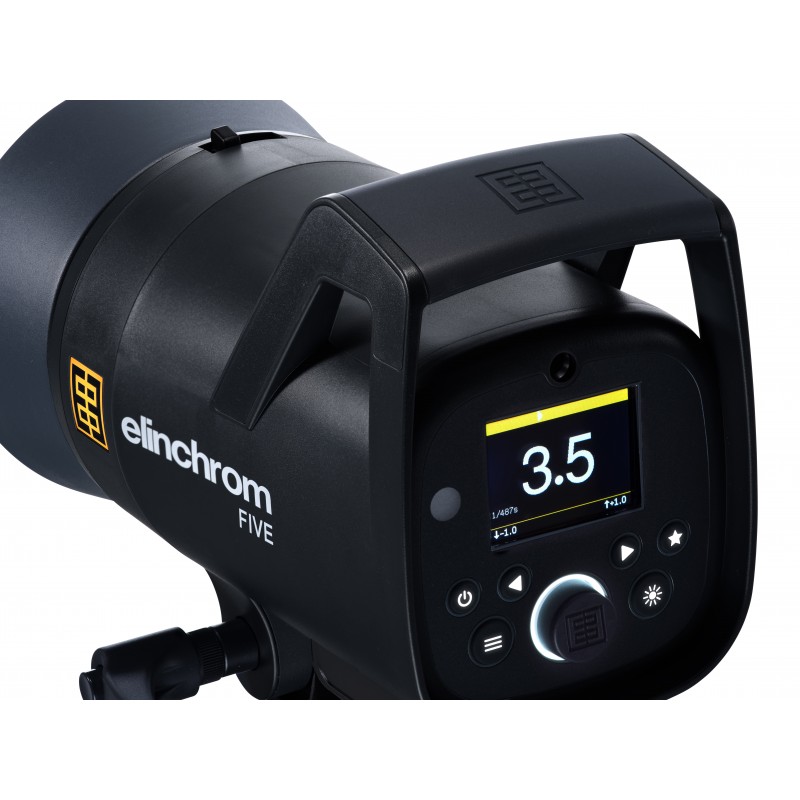

Elinchrom’s quick menu ensures you never miss a chance to capture the moment.
UNIT
Energy (Ws/J) 522
F-Stop (1m, 100 ISO, HP Reflector 26 cm (10.2”)) 90.4
F-Stop (2m, 100 ISO, HP Reflector 26 cm (10.2”)) 32.8
Power range (F-Stop) 7
Power range (Ws/J) 7 – 522
Power range display 1/1 to 1/64
Power increments in Manual / TTL mode (F-Stop) 1/10th / 3/10th from – 3.0 to +3.0
Flash duration t0.1 min/max power (Normal mode) 1/1800s – 1/200s
Flash duration t0.1 min/max power (Action mode) 1/8080s – 1/250s
Recycling time min/max power 0.01s / 1.6s
Flash mode Manual / TTL / HSS (with Transmitter Pro)
Standard mode Optimized color temperature over the power range
Action mode Faster flash duration over the power range
TTL mode / HSS mode Yes (with Transmitter Pro)
Flash colour temperature at max power 5600 K (Standard) / 5900 K (Action) / 5500 K (HSS)
Please note that the measured colour temperature might vary depending on the accessory, environment, and time of day.
Flash colour stability over the power range (all modes) ±200 K
Power stability ±0.5%
Auto power dumping Adjusts power settings automatically in real time
Fan cooled Smart Pro Active cooling
Input USB-C
Flash tube (plug-in user replaceable) Article code: 24092
Glass dome transparent Screwed with 3x Torx TX10
Sync voltage 5V (compatible with all cameras)
Sync socket 3.5 mm jack
Weight 2.4kg / 5.3lbs
Weight (inc. battery) 3kg / 6.6lbs
Dimensions
Height 26.3cm / 10.35"
Width 16.7cm / 6.57"
Length 28cm / 11.22"
BATTERY
Battery Li-Ion - 82Wh / DC 14.4V
Battery flash quantity min/max power (LED lamp OFF) 14’600 / 450
Battery flash quantity min/max power (LED lamp ON 100%) 6000 / 350
Battery charge status On the battery / unit display and the side logo of the unit
Charging time (with 65W USB-C Wall Charger)
Battery plugged in unit
80% – 1h10
100% – 1h35
Battery out of unit
80% – 2h00
100% – 2h35
LED
LED modeling lamp modes On/Off, free, proportional, VFC
LED modeling lamp power 26W / 4000 lm / CRI 91-94
LED modeling lamp color temperature Presets from 2700 K to 6500 K
LED run time (LED only, min/max power) 30hours / 2h15
RADIO
Skyport (built-in) 20 frequency channels, 4 Groups
Skyport distance range (Transmitter Pro, manual mode) Indoor: up to 60 m / Outdoor: up to 200 m
Bluetooth (built-in) Version 4.2 / Compatible Studio Software Win, Android, Mac, iOS

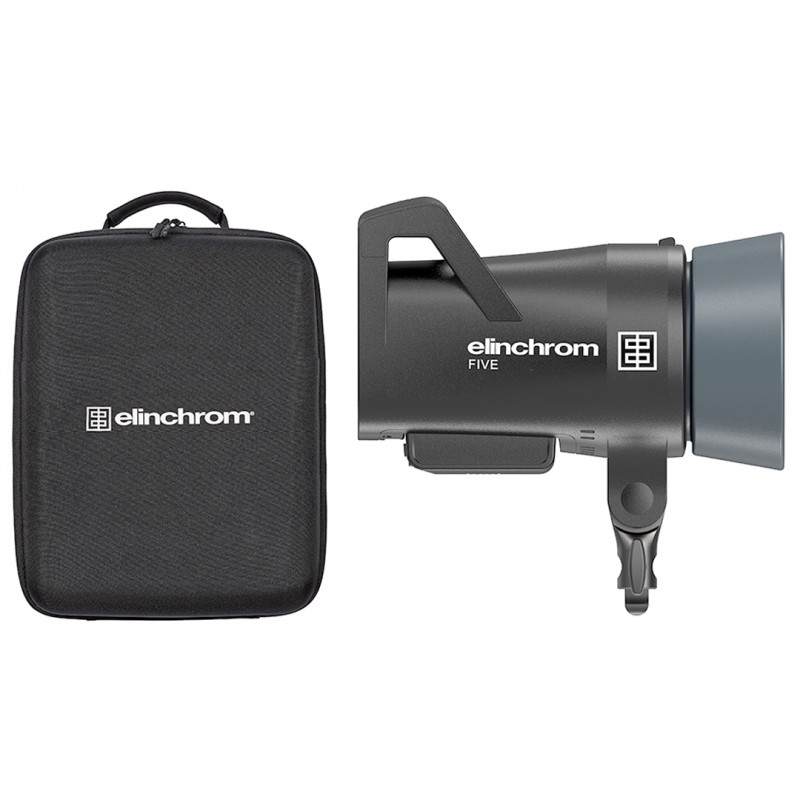

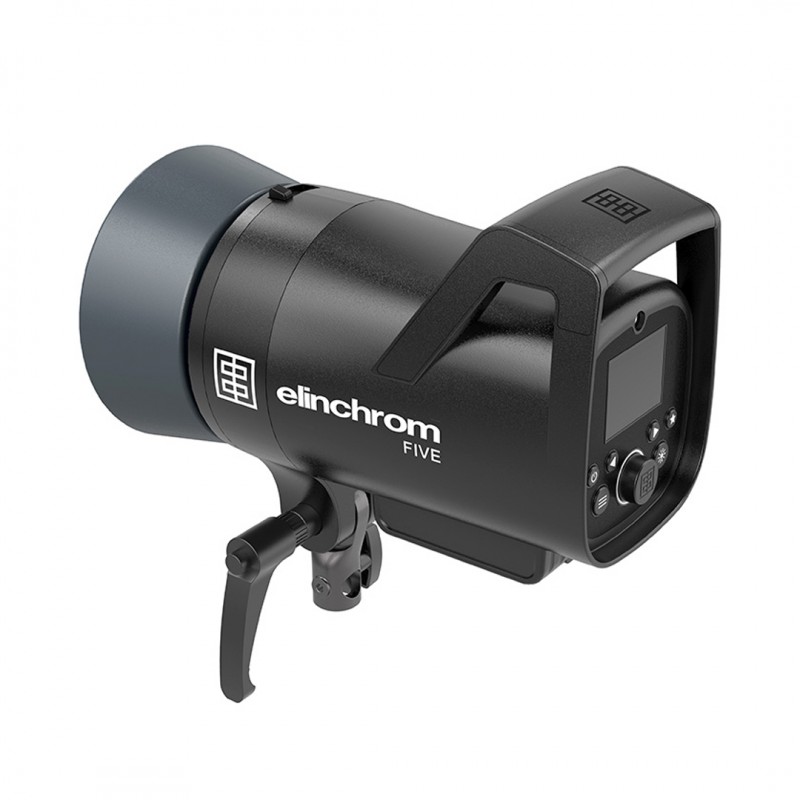

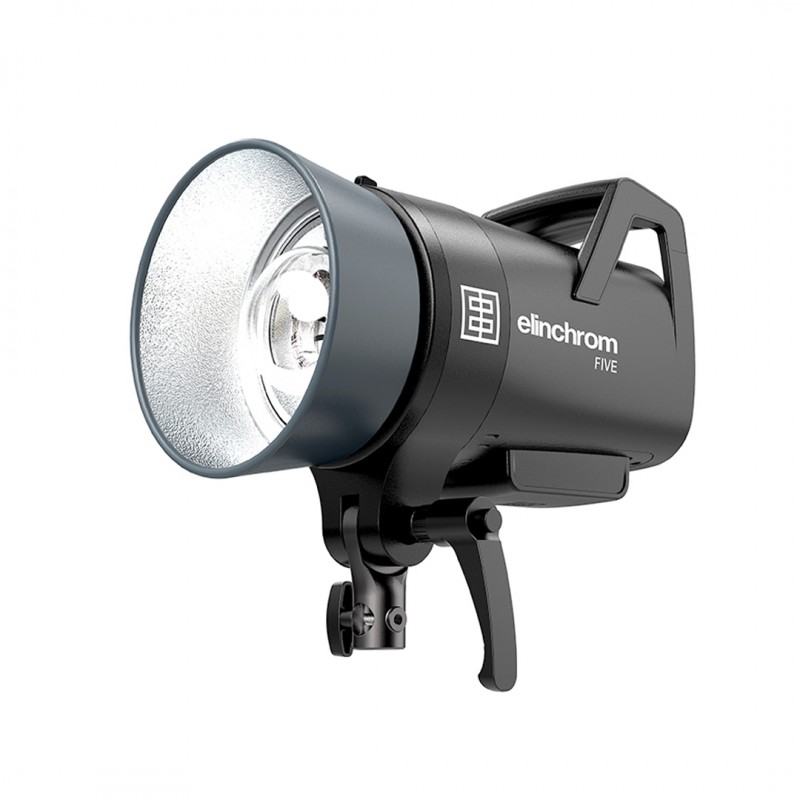

1x Elinchrom FIVE - Monolight
1x Elinchrom FIVE - Battery
1x Wide Reflector 16 cm (6.3’’)
1x Elinchrom 65W USB-C Wall Charger

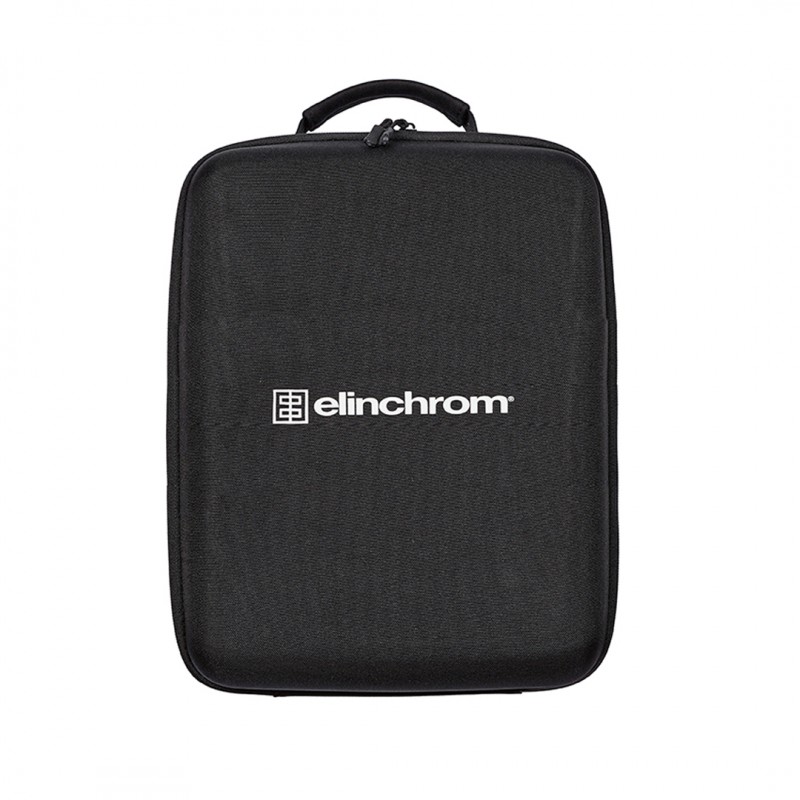

1x Elinchrom Hard Case for FIVE
