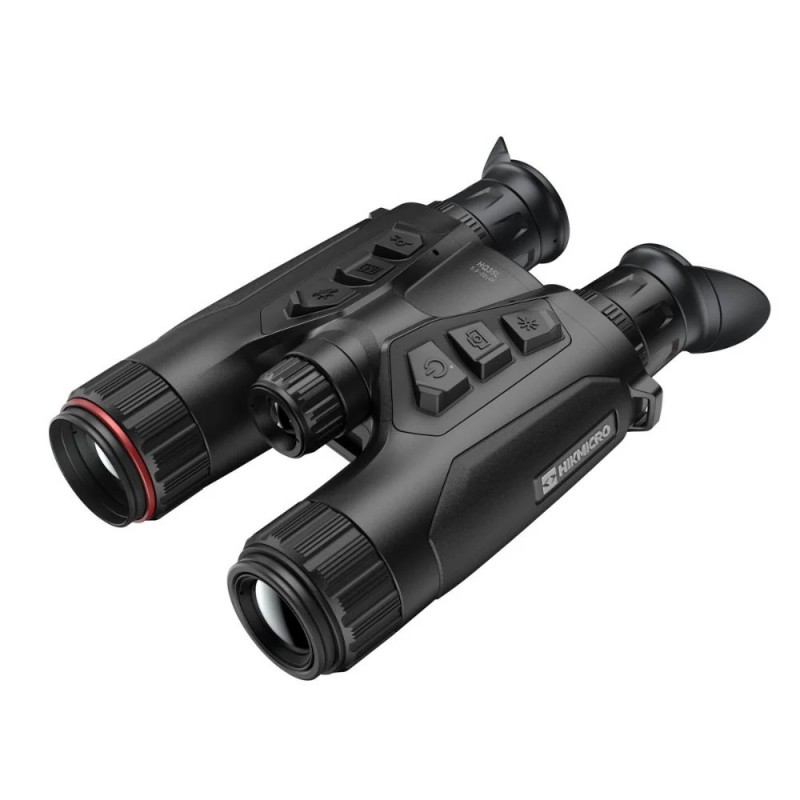

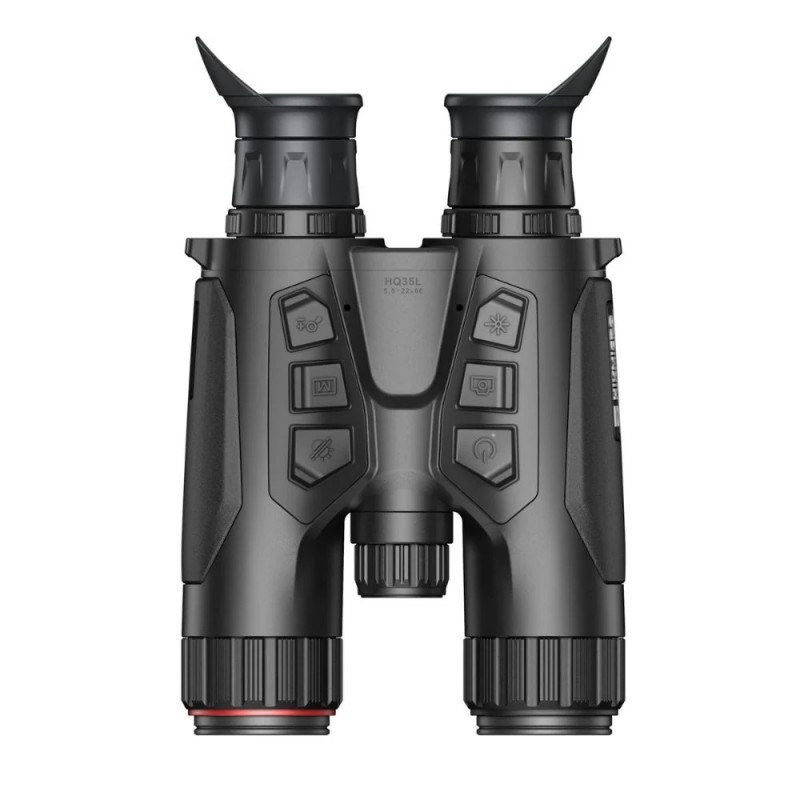

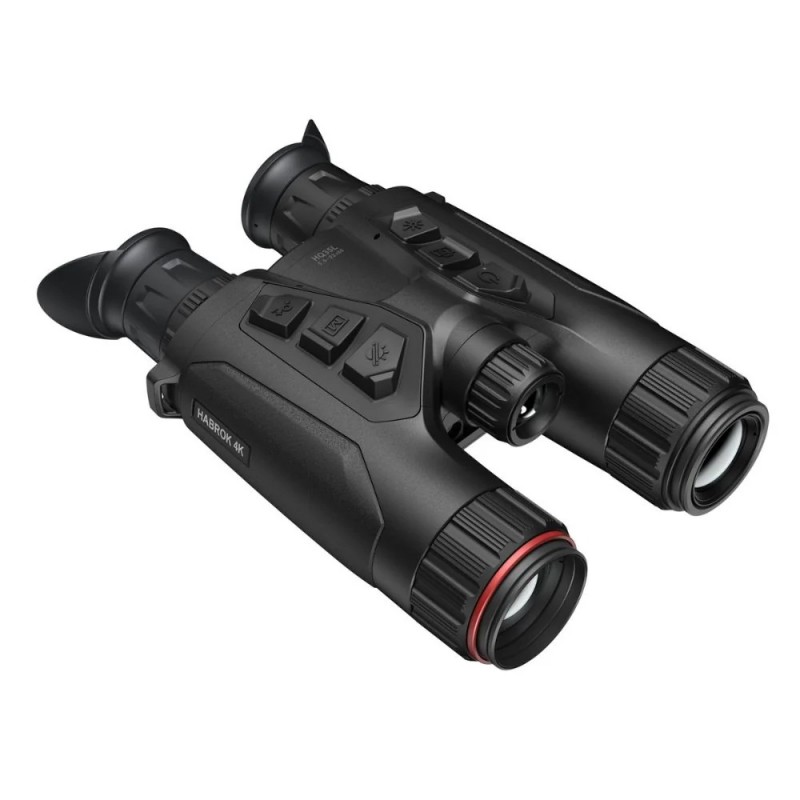

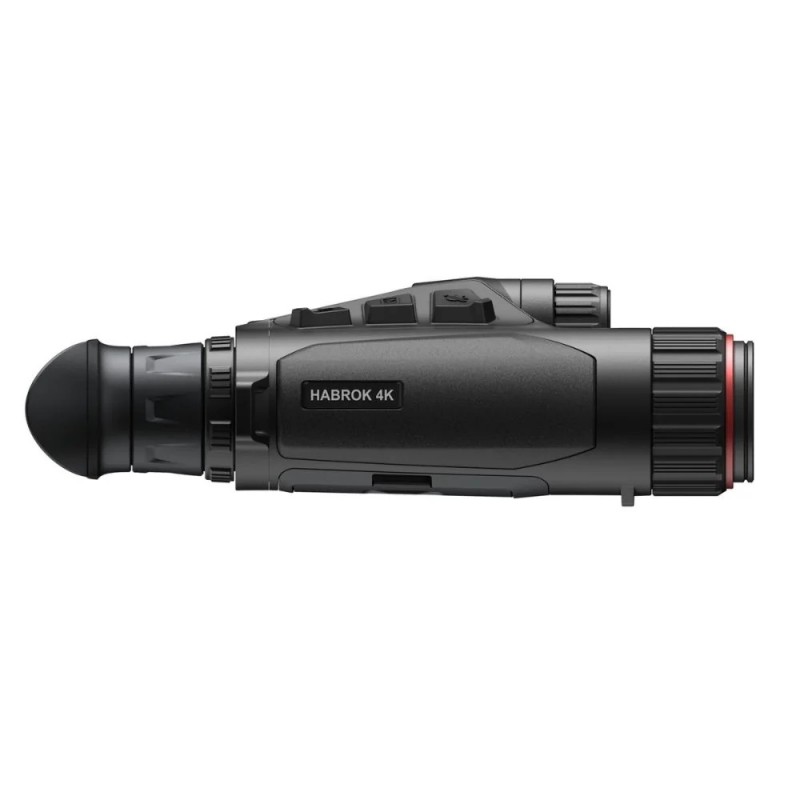

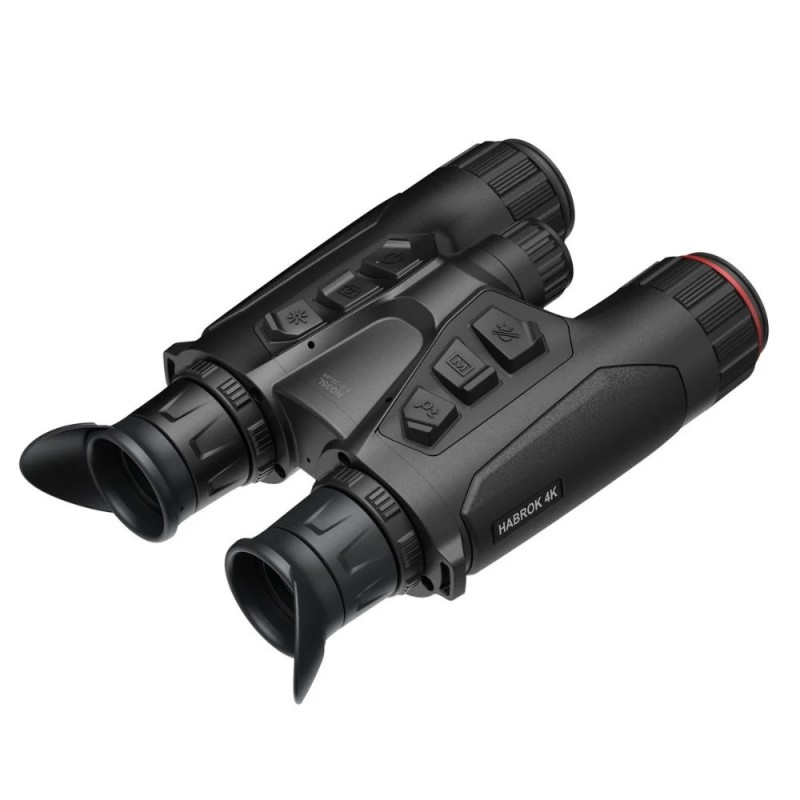

HIKMICRO Habrok 4K HQ35L Thermal Imaging Binoculars

Thermal imaging, night vision, and rangefinder – all in one binocular!

The 3-in-1 solution as a handy stalking device

• Sensor resolution 640x512 12μm
• High-sensitivity detector NETD < 20 mK
• 4K day/night vision sensor 3840x2160 pixels
• Interchangeable 850nm and 940nm IR illuminator
• Laser rangefinder (LRF) up to 1000m
• Swappable battery with 8 hours continuous operation

The Hikmicro Habrok HQ35L 4K thermal imaging binocular offers maximum sensitivity thanks to its fast F1.0 lens with a 35 mm diameter and a <20mk 640 x 512 thermal imaging sensor. The Habrok HQ35L 4K is multispectral and additionally features a 4K day and night sensor with a 60 mm focal length as well as an adjustable IR illuminator. Furthermore, the Habrok 4K comes with a built-in 1000 m LRF system for precise distance measurement.

The compact, rugged all-rounder

The Habrok 4K series features a traditional binocular design, compact and lightweight, packing powerful thermal imaging, night vision, and a 1000m laser rangefinder into an 800-gram unit. The Habrok thermal imaging binocular boasts a magnesium alloy design with side rubber inserts for additional grip and a compact body style. The objective lens uses SDLC coating technology to prevent scratches. With a waterproof rating of IP67, the device can be submerged up to 1 meter for 30 minutes, making it perfect for long-term use in demanding environments.

Optical sensor

This multispectral binocular features a 4K CMOS optical sensor with a high resolution of 3840x2160 pixels and extremely high light sensitivity of 0.001 Lux. This allows the Habrok to perform exceptionally well in low-light scenarios, delivering a clear, bright, full-color image even well after sunset in daylight mode, before seamlessly switching to night vision mode with the interchangeable 850 nm or 940 nm illuminator, ensuring a smooth viewing experience in all scenarios. The sensor has a base magnification of 5.5x, digitally zoomable up to 4x, resulting in a maximum magnification of 22x. The day/night vision sensor has a field of view of 12.0x7.2 meters at 100 meters distance.

Thermal imaging sensor

In addition to the optical sensor, the Hikmicro Habrok HE25L also features a thermal sensor. This sensor has a resolution of 256x192 pixels and a pixel pitch of 12 µm, providing a detailed image. The thermal sensitivity of less than 35 NETD ensures exceptionally clear thermal images and the ability to detect even the smallest temperature differences. The thermal sensor offers a minimum magnification of 5.3x and a maximum magnification of 17.2x. The field of view is 12.6x7.2 meters at 100 meters distance, with a detection range of 1800 meters, allowing for effective observation of larger areas.

Display

The captured images are clearly displayed on the high-quality 1920x1080 pixel OLED display. The display has a refresh rate of 50 Hz for smooth imaging, allowing you to observe comfortably without missing a moment. To further facilitate observation in various lighting conditions, the Habrok multispectral binoculars from Hikmicro offer seven different color modes:

Optical: Day, Night, Auto

Thermal: Black Hot, White Hot, Red Hot, Fusion

Zoom Pro: Enhanced Zoom

HIKMICRO’s proprietary image algorithm enables finer detail visibility beyond the limits of digital magnification.

Image Pro: Enhanced Image Processing

With HIKMICRO’s proprietary Image Pro processing algorithm, excellent digital image optimization is achieved. The algorithm adapts to various observation purposes and conditions, ensuring high-quality representation of both target objects and backgrounds.

Replaceable and rechargeable high-performance batteries

Enjoy uninterrupted observation with replaceable and rechargeable 18560 batteries (4x included). The device uses 2x 18650 batteries, providing an uninterrupted runtime of over 8 hours. Batteries can be swapped in seconds to ensure practically continuous viewing. Additionally, a standard power bank or USB power supply can be connected via the Type-C port for external power, charging, and continuous operation.

1000m laser rangefinder

Each device in the Habrok series features an impressive 1000m laser rangefinder with an accuracy of +/-1m, enabling precise distance measurement to your target.

Inclination sensor

With intelligent sensors, the Habrok can automatically switch off the screen when tilted, extending battery life.

Smart IR and manual focus

Thanks to automatic exposure correction technology, the Habrok can automatically adjust the brightness of the IR illuminator and allows users to manually focus the light beam for the best possible image even in challenging environments, further preserving battery life.
