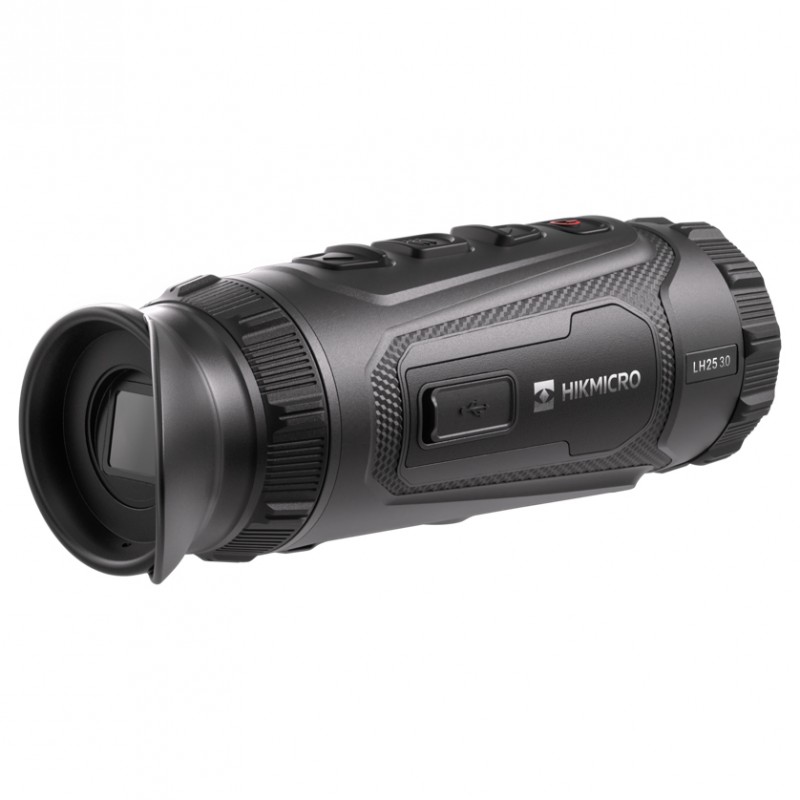

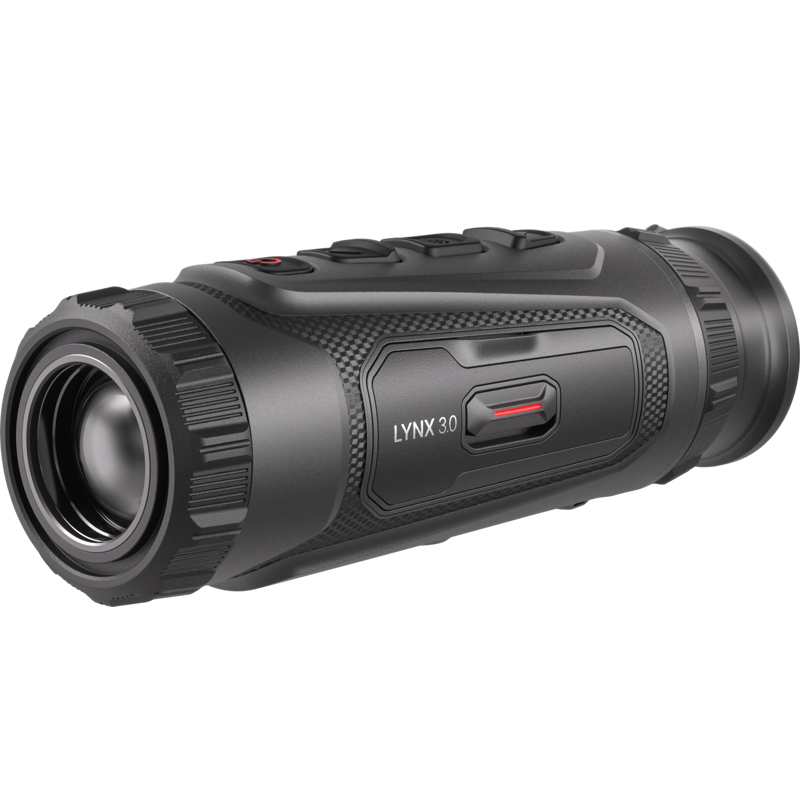

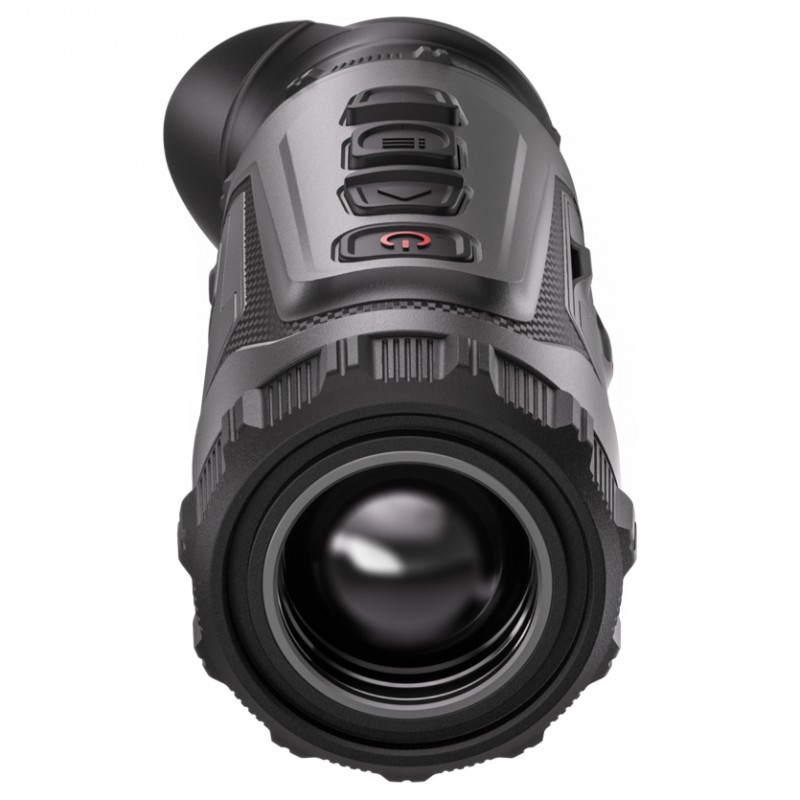

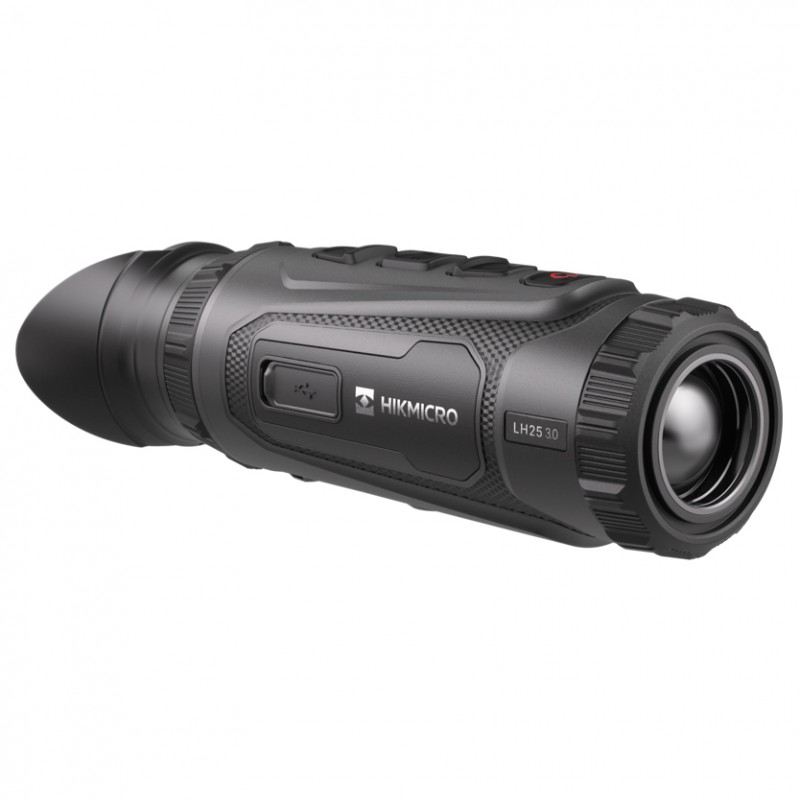

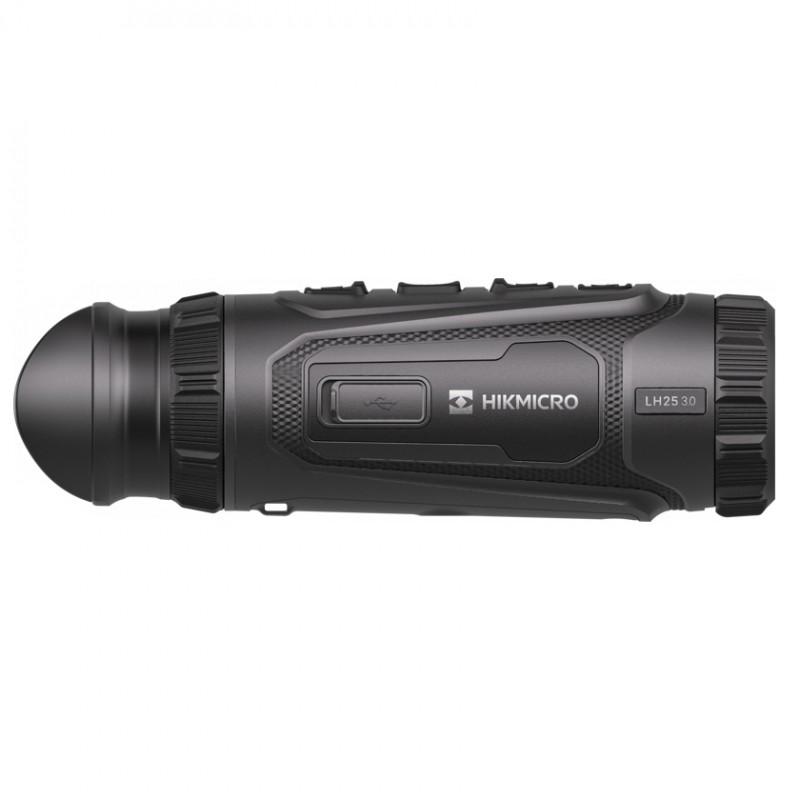

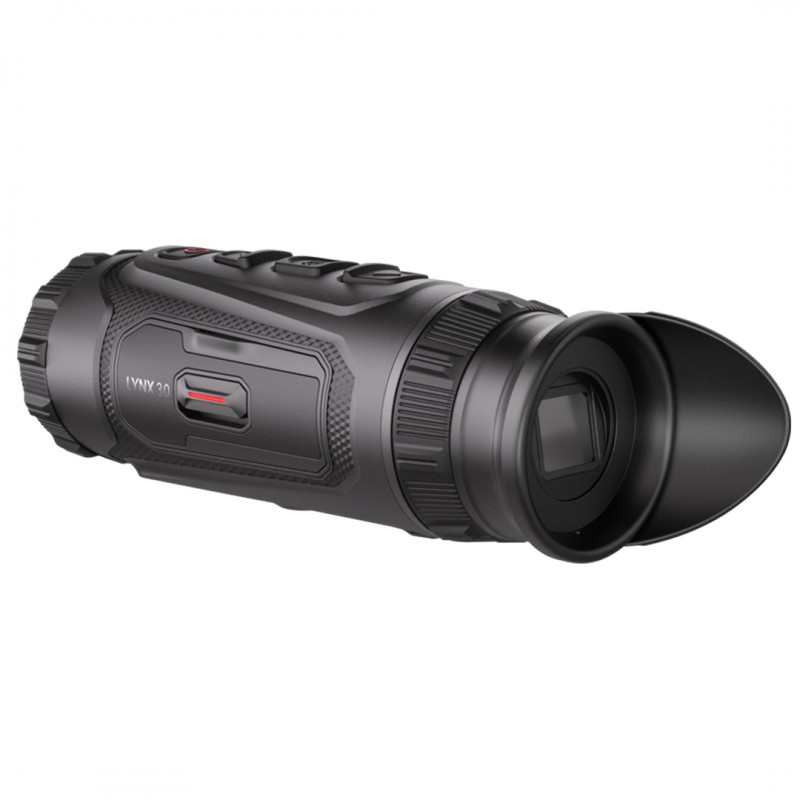

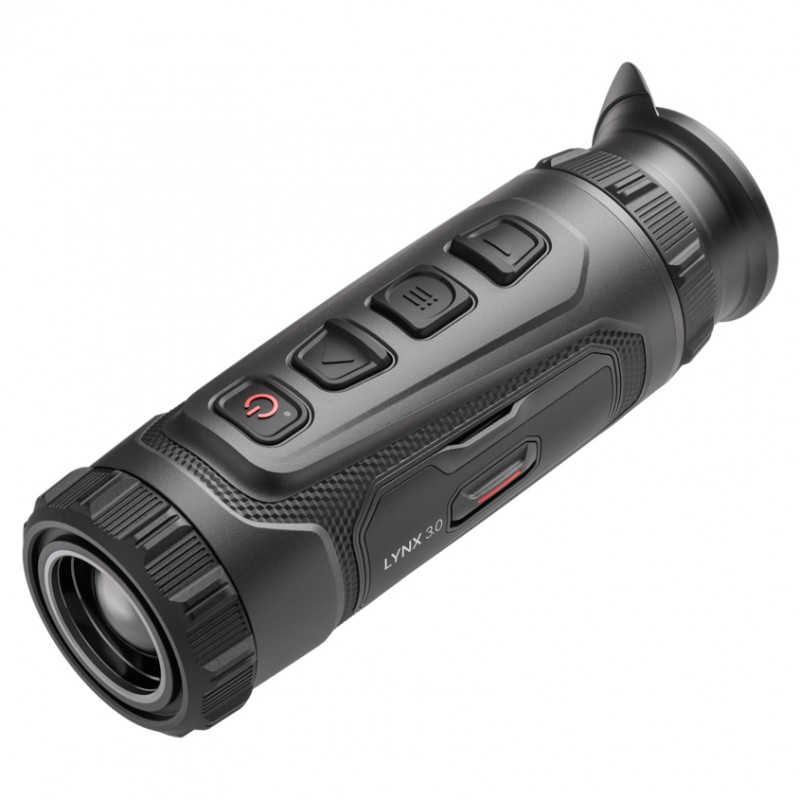

HIKMICRO Lynx LH25 3.0 Thermal Monocular

Extended Range Performance

The LH25 3.0 features a high-sensitivity thermal module with a 25mm f/1.0 lens configuration, providing 2.5× base magnification and an impressive 1200-meter detection range. The system delivers a 10.5° field of view (18.4m at 100m), optimized for long-distance target acquisition while maintaining situational awareness. With NETD performance below 15mK at 25°C, the device ensures reliable thermal differentiation across extended ranges.

Advanced Image Processing

HIKMICRO's proprietary Shutterless Imaging System (HSIS) maintains uninterrupted observation by eliminating periodic calibration freezes. The integrated AI-powered Image Pro 3.0 and Zoom Pro algorithms work in concert to optimize image quality, enhancing thermal contrast and preserving critical detail throughout the zoom range.

Professional Display Technology

The 0.49-inch OLED display renders thermal imagery at full 1920×1080 resolution, delivering crisp, high-contrast viewing through the eyepiece. The replaceable 18650 battery provides up to 4.5 hours of continuous operation at -20°C, ensuring dependable performance during extended surveillance or tracking sessions.

Field-Ready Design

At 328.5 grams, the LH25 3.0 maintains excellent portability despite its enhanced optical system. The pocket-sized form factor combines with professional-grade detection capabilities to create an ideal solution for hunters, wildlife observers, and security professionals who require maximum range without compromising field mobility.

Keys specifications

• VOx uncooled thermal sensor with 384×288 resolution and 12μm pixel pitch captures high-definition thermal imagery at 50Hz frame rate, operating across the 8-14μm waveband for optimal atmospheric penetration

• 25mm f/1.0 germanium lens delivers 2.5× base magnification expandable to 20× (8× digital zoom), with manual focus ring adjustment from 3m minimum focusing distance to 1200m detection range

• AMOLED display technology features 0.49-inch 1920×1080 resolution viewfinder with adjustable diopter correction (-5D to +3D), 6mm exit pupil, and 20mm eye relief for comfortable extended observation

• Multiple thermal palettes include Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, and Green Monochrome modes with independent brightness, contrast, and tone adjustment (Cold/Warm) for optimized target contrast

• Extended detection capability achieves 1200m range with 10.5°×6.4° field of view (18.4m × 11.2m at 100m), providing effective coverage for open terrain surveillance and long-range target acquisition

• Precision thermal sensitivity with NETD less than 15mK (@25°C, F#=1.0) combined with HIKMICRO Shutterless Imaging System ensures uninterrupted observation and consistent image quality across all conditions
