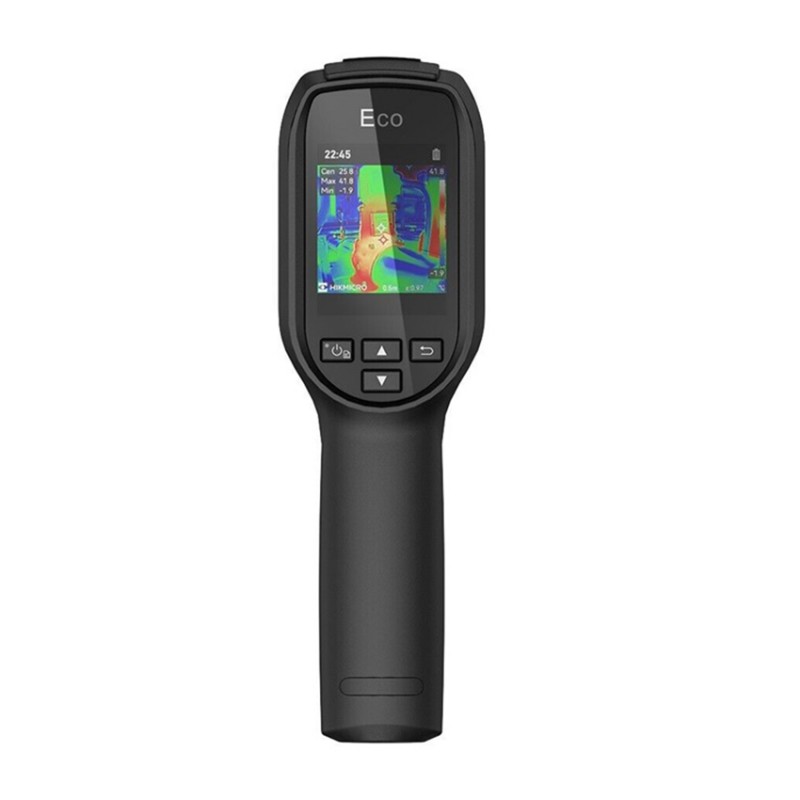

HIKMICRO Thermography ECO-V Thermal Imaging Camera
The HIKMICRO Eco-V is a dual-optics thermal imaging camera for optical and IR images. The HIKMICRO SuperIR image enhancement technology scales stored thermal images and live views from 96 × 96 (9,216 pixels) to a resolution of 240 x 240 (57,600 pixels).
It detects temperature changes and measures in real time for each of the central, hot and cold point. 3 measuring points are user-definable and 7 colour palettes are available for display. A laser pointer facilitates the exact aiming of the desired measuring area.
For live viewing and recordings, the 4 GB internal memory offers space for approx. 30,000 images.
Can be installed on a tripod using a standard thread. This affordable, everyday model can be used for many different application scenarios.
Wide angle
With a wide-angle lens, the HIKMICRO Eco and Eco V offer a field of view of 50° × 50° and are ideal for scanning walls, floors and facades to detect problems such as water leaks, insulation problems and air pockets. With the optional macro lens, the thermal imaging cameras can also be used for detailed thermal imaging of smaller objects and circuit boards.
Smooth display with 25 Hz
The high frame rate of 25 Hz ensures that thermal liveo recordings are smooth and jerk-free and that no detail is lost in the recording.
High Image Quality
Features a sensitive (NETD < 50 mK) detector, along with optimized image enhancement algorithms to provide clear thermal images.
3 Image modes (Eco V only)
Built-in IR camera and optical camera that allow you to switch between 3 image modes (thermal image, visual image and fusion). "Fusion" adds important details from a 0.3 megapixel visual camera to the IR image for extra detail and clarity.
Measurement
Supports capture of full-screen radiometric images and automatically tracks max/min/centre spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20 °C to 550 °C ( -4 °F to 1,022 °F) with a temperature accuracy up to +/-2 °C (+/-3.6 °F) or +/-2 % of reading.
Colour palettes High Temperature Alarm
Offers colour palettes White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion (Eco V only) & Above Alarm so you can choose the ideal colour scale for your job.
- EAN: 6974004642921
- Brand: HIKMICRO
- Product Code: HIK-HM-TP30-1AQF-ECO
- Availability: Low Stock
- €295.00
- Ex Tax: €239.84
