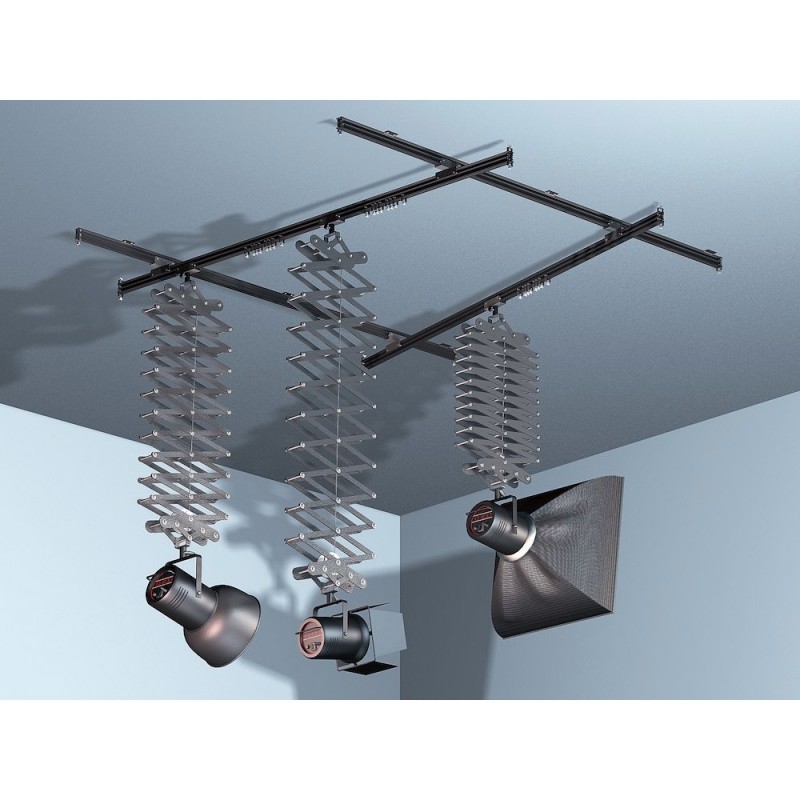

Manfrotto 3043 Toprail 4m with 3 Pantographs

Complete kit for medium-sized studios composed of 2 fixed rails 4m long, 2 mobile rails 3m long and supports for 3 light sources (3 Top Pantographs).

The Pro Studio Rail System is a modular overhead lighting suspension system which can be expanded or modified to your requirements. It provides precise positioning of lights with ease and speed, eliminating the clutter of light stands and power cables on the floor. The systems utilize a combination of rails, carriages, telescopic posts, and manual spring/cable assisted or motorized pantographs.

This is an 3 Pantograph System, for a large-size studio.

NOTE: Ceiling construction information must be noted, including all dimensions of support members and ceiling height. Make a note of all obstructions and room dimensions.

Key Features

Aluminium rails in this kit are 2.99m and 3.96m

This kit features 2 stationary, and 2 moving rails.

The Pantograph supports a load of up to 26lbs suspended from 0.3m to 1.83m using only the friction device, while loads up to a maximum of 18.143 require the use of the optional springs. The pantograph can be adjusted to keep suspended loads from 2lbs to 10lbs perfectly balanced. The coloured ring can adjust the pantograph's friction; this will ensure that the load remains stable when set in position, but that it will move smoothly up and down when necessary. It is advisable to use springs to aid raising the pantograph.

Each pantograph extends from 0.3m to 1.83m

Nylon wheels with metal ball bearings ensure safe operation with loads of up to 17.916kg

Extruded aluminium rails enable efficient utilization of studio perimeter walls and corners for back lighting, drapes, and background paper.

All components are black, to eliminate unwanted reflections.

Accessories may be ordered separately, to augment and customize the system to your specific requirements.

Note:

Sliding rails cannot be joined. To connect two fixed rails use code FF3208.

You must always support the junction of two rails with a ceiling attachment placed on the junction itself.

Moving rails longer than 2.99m must be supported with more than two fixed rails.

The maximum distance between any of these fixed rails is 2m.

What's Included:

2 x 9' 10" Rails (FF6003B)

2 x 12' 3" Rails (FF6004B)

3 x Top 2 Pantograph (FF3512N86)

2 x Double sliding carriages (FF3232)

2 x Double sliding carriages with single brakes (3236)

3 x Wheeled sliding carriages with 5/8" spigots (FF3230)

6 x Mounting brackets (FF3210)

3 x Sets of 4 End stops (FF3207)

3 x Safety cables (FF3276)

1 Year Manufacturer's Warranty
