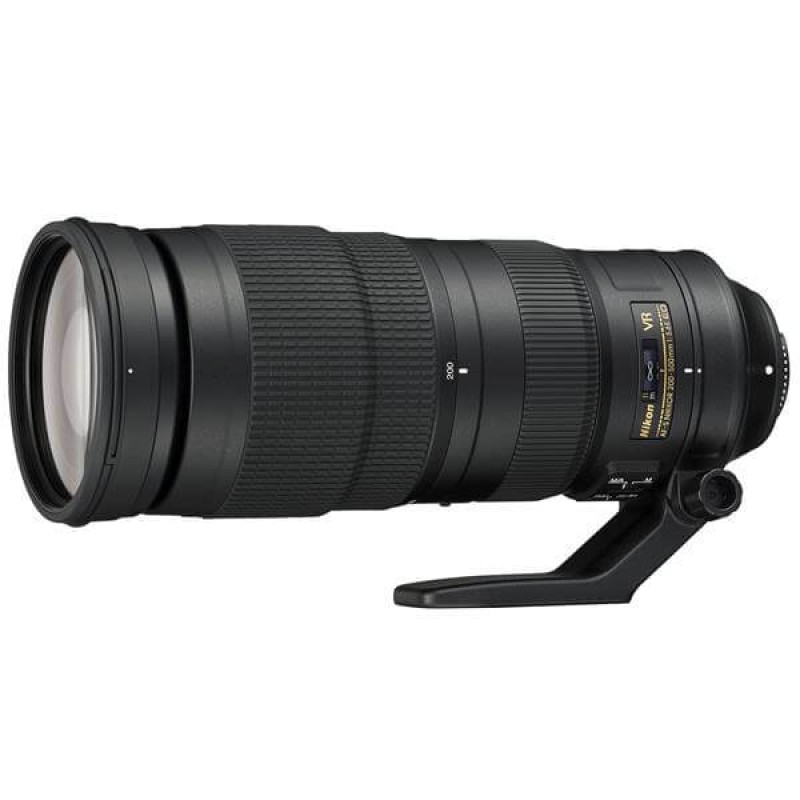

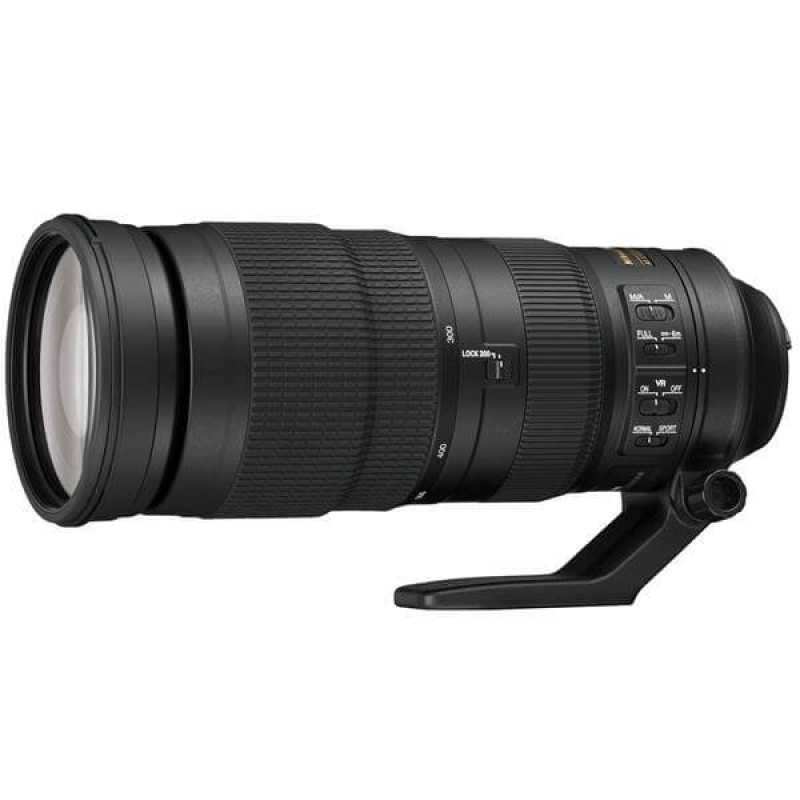

Nikon AF-S NIKKOR 200–500mm f/5.6E ED VR
Click Image for Gallery
Spanning a long, versatile zoom range, the AF-S NIKKOR 200-500mm f/5.6E ED VR Lens from Nikon is a telephoto zoom characterized by a constant f/5.6 maximum aperture for consistent performance throughout the zoom range. The optical design incorporates three extra-low dispersion glass elements to reduce chromatic aberrations and distortions for increased sharpness and colour accuracy. Also contributing to improved image quality, a Super Integrated Coating has been applied to lens elements to lessen flare and ghosting for improved contrast and clarity.
A Silent Wave Motor AF system produces fast, near-silent focusing performance that suits both stills shooting and movie recording, which can instantly be manually overridden by simply turning the manual focus ring. Further contributing to photographing in fast-paced situations and difficult lighting, VR (Vibration Reduction) image stabilization compensates for the effects of camera shake by up to 4.5 shutter speed stops. Additionally, an electromagnetic aperture mechanism is integrated into the lens design to provide greater exposure control stability that is especially beneficial when working with faster continuous shooting rates.
- Designed for use with FX image sensors, this lens is also compatible with DX sensors where it will provide a 300-750mm equivalent focal length range.
- Constant f/5.6 maximum aperture offers consistent performance throughout the zoom range.
- Three extra-low dispersion elements greatly reduce colour fringing and chromatic aberrations in order to produce greater clarity and colour accuracy.
- A Super Integrated Coating has been applied to individual elements to suppress internal reflections, flare, and ghosting for improved contrast and colour accuracy when working in strong lighting conditions.
- Silent Wave Motor affords quick, quiet, and precise autofocus performance along with full-time manual focus override. An internal focusing design is also used, where only the internal lens groups are moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.
- Vibration Reduction image stabilization helps to reduce the appearance of camera shake for up to 4.5 shutter speed stops, benefiting this lens' use in low-light conditions. Additionally, a designated Sport Mode is well-suited to working in fast-paced conditions where panning and other lateral camera movements are more common.
- A rotating tripod collar offers well-balanced support for photographing atop a tripod or monopod with either vertical or horizontal shooting orientations.
- Specialized electromagnetic aperture mechanism provides greater exposure control stability that is especially beneficial when working with fast continuous shooting rates.
The following cameras are compatible with this lens: D5, D4 series, D3 series, Df, D850, D810, D810A, D800 series, D750, D700, D610, D600, D500, D300 series, D7500, D7200, D7100, D7000, D5600, D5500, D5300, D5200, D5100, D5000, D3400, D3300, D3200, D3100, Nikon 1 J1, J2, J3, J4, Nikon 1 V1, V2, V3 with FT-1, Nikon 1 S1, S2 with FT-1.
Compatible with optional AF-S Teleconverter TC-14, TC-17, and TC-20 teleconverters.
|
Focal length
|
200-500mm |
|
Supplied accessories
|
LC-95 95 mm Snap-on Front Lens Cap, HB-71 Bayonet Hood, LF-4 Rear Lens Cap, CL-1434 Semi-soft Case |
|
Minimum focus distance
|
2.2m from focal plane (throughout the entire zoom range) |
|
Maximum aperture (Constant through Zoom range)
|
f/5.6 |
|
Minimum aperture
|
f/32 |
|
Filter attachment size
|
95mm |
|
Diameter x length (extension from lens mount)
|
Approx. 108 mm × 267.5 mm |
|
Maximum reproduction ratio
|
0.22x |
|
No. of diaphragm blades
|
9 (rounded diaphragm opening) |
|
Angle of view
|
Nikon film SLR and FX-format D-SLR cameras: 12°20′-5°00′. Nikon DX-format D-SLR cameras: 8°00′-3°10′ |
|
Weight
|
Approx. 2300 g (including tripod collar) Approx. 2090 g (without tripod collar) |
|
Lens construction
|
19 elements in 12 groups (including 3 ED glass elements) |
- LC-95 95 mm Snap-on Front Lens Cap
- HB-71 Bayonet Hood,
- LF-4 Rear Lens Cap,
- CL-1434 Semi-soft Case
