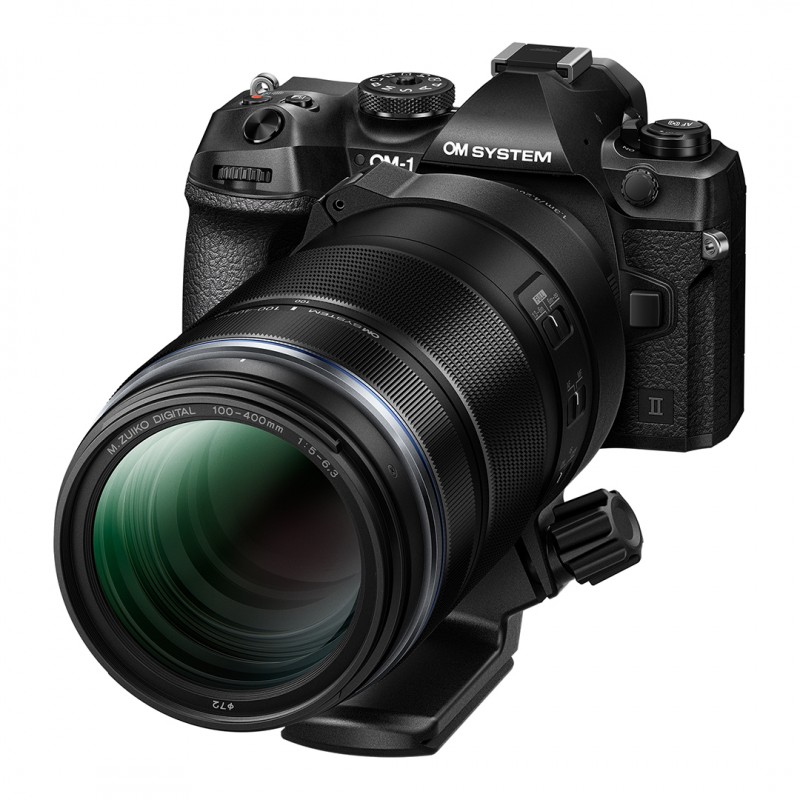

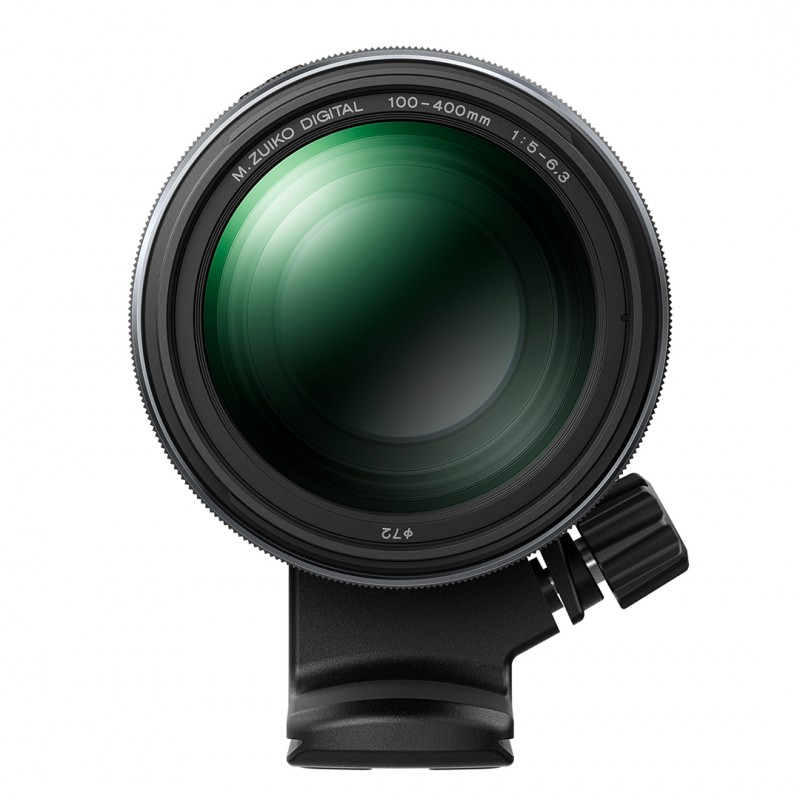

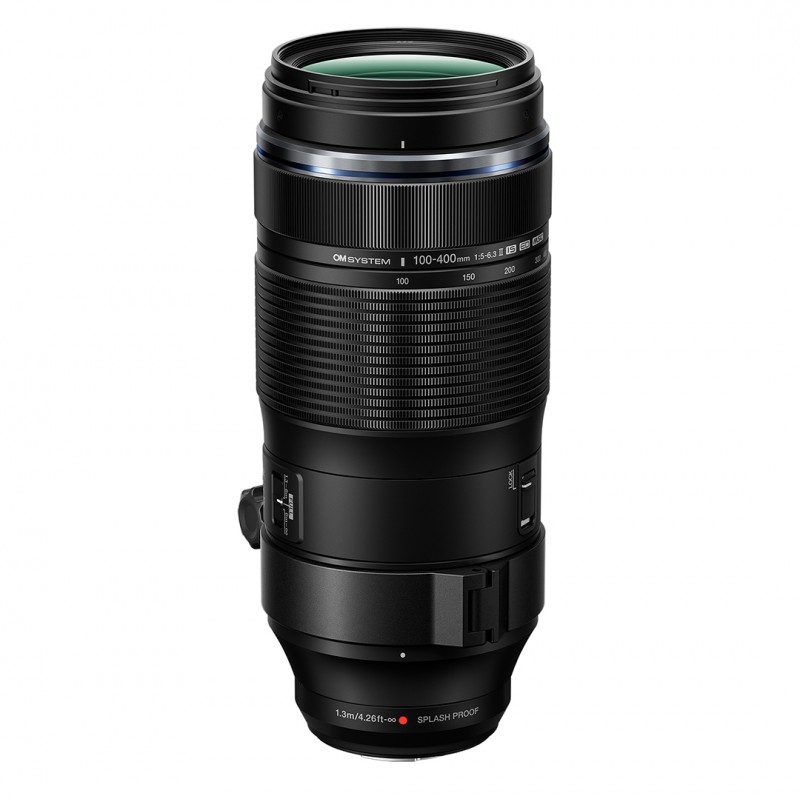

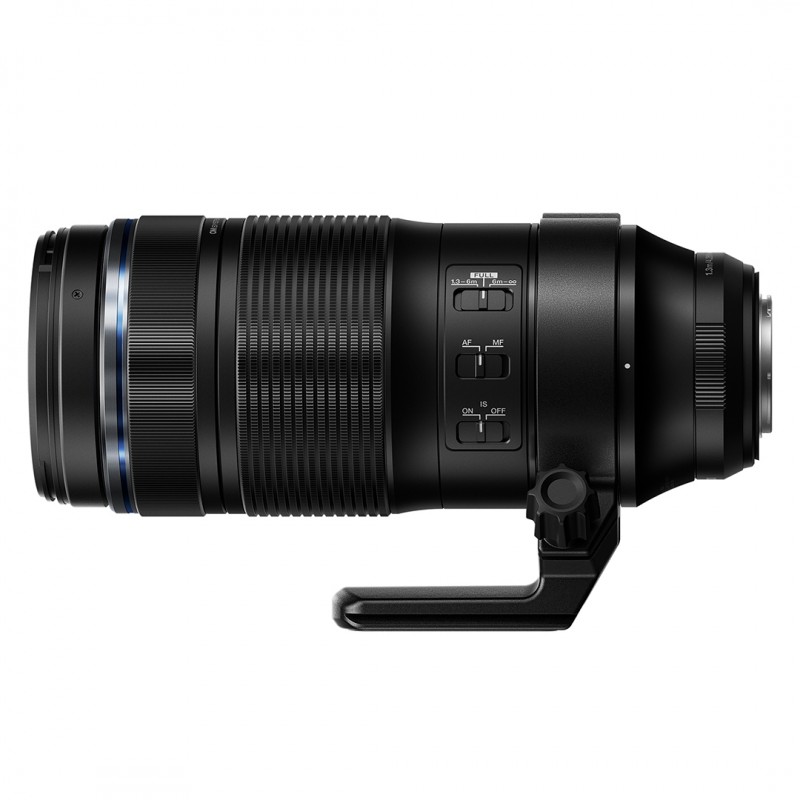

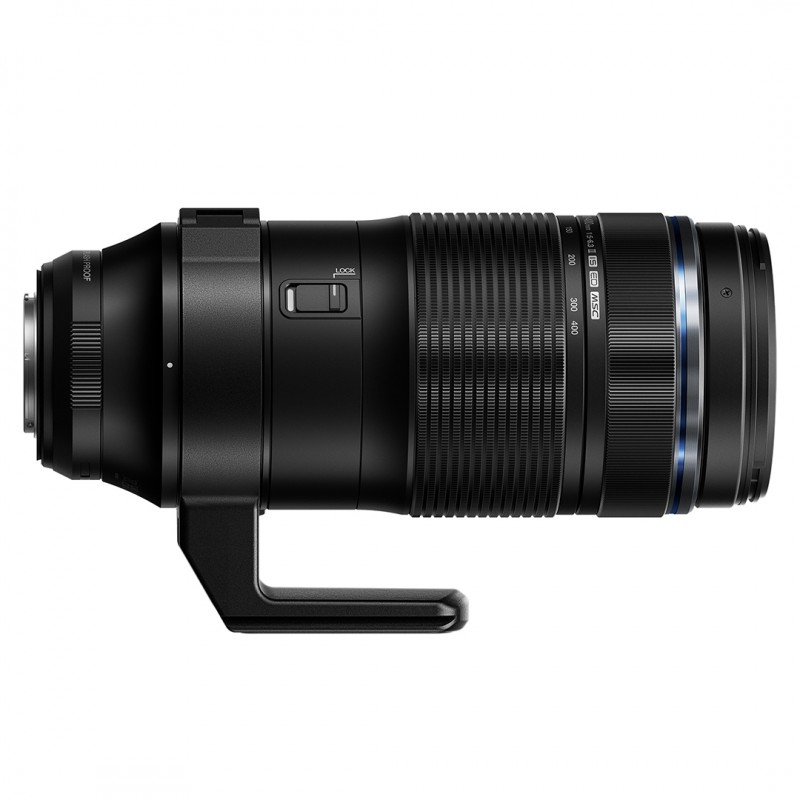

OM System M.ZUIKO 100-400mm F/5.0-6.3 IS II Lens
A compact lens with so much telephoto reach shouldn’t be possible. Yet here it exists, and you’ll love the freedom that comes with it. Packing a 35mm equivalent focal range of 200mm to 800mm in a lightweight weather sealed design, it’s an ideal lens for wildlife, motorsports, and telephoto macro shooting.
Compact Reach.
200-800mm (35mm equiv.) reach in a lightweight 1125g body
Weather sealed.
Always ready for any condition, thanks to the IPX1-certified weather sealing
Sync IS up to 7.0 stops EV.
Unmatched stability while shooting handheld with long focal lengths.
Lens Construction
Lens configuration 21 elements / 15 groups
Maximum image magnification 0.09x (wide) / 0.29x (tele)
(equiv. 35mm) 0.17 x (wide) / 0.57 x (tele)
Angle of view 12 - 3.1°
Closest focusing distance 1.3m
Minimum field size 202.4 x 152.1mm (wide)
60.3 x 45.3mm (tele)
ED lens elements 4
HR elements 2
Super HR elements 2
Focal Length
Focal length 100 - 400mm
Focal length (equiv. 35mm) 200 - 800mm
Image Stabiliser
Effective Compensation Range Up to 7 EV steps* (5-axis Sync IS)
Converter Combinations
MC-14
Maximum image magnification 0.12 x (wide) / 0.40 x (tele)
(equiv. 35mm) 0.24 x / 0.81 x (equiv. 35mm)
Minimum field size 143.5 x 107.9mm (wide)
42.8 x 32.1mm (tele)
MC-20
Maximum image magnification 0.17 x (wide) / 0.57 x (tele)
0.34 x / 1.15x (equiv. 35mm)
Minimum field size 101.2 x 76.0mm (wide)
30.1 x 22.6mm (tele)
Dimensions / Weight
Diameter 86.4mm (greatest dimension)
Length 205.6mm
Filter diameter 72mm
Weight 1,125g (without Tripod Adapter, Lens Cap, Lens Rear Cap and Lens Hood)
Compatibility
Compatible to Tele Converter MC-14 Yes
Compatible to Tele Converter MC-20 Yes
Operates with 5-axis Sync IS Yes
Cover / Cap
Lens Cap LC-72D
Lens Hood LH-76D
