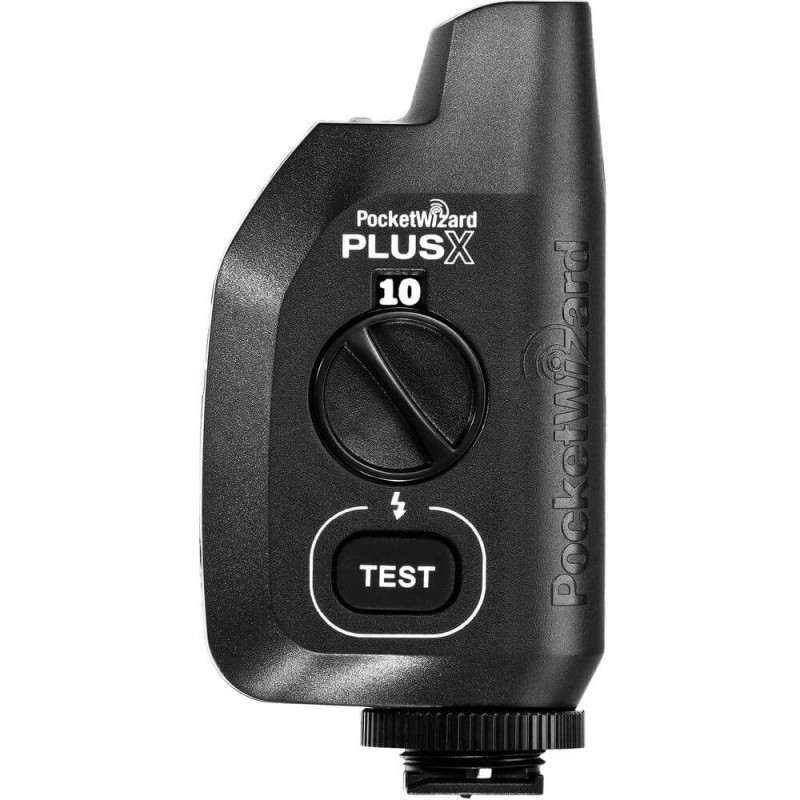

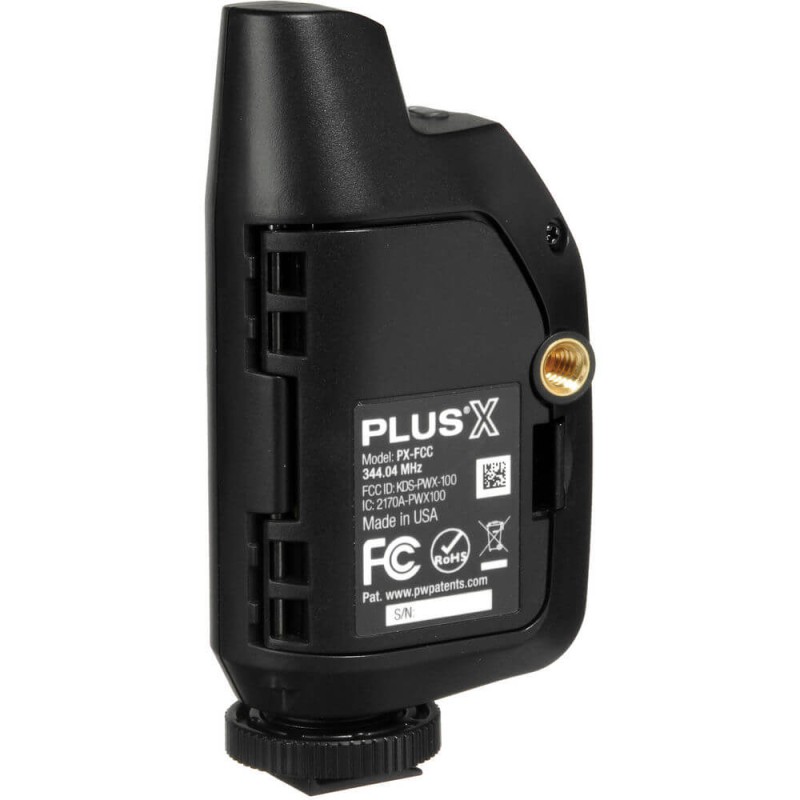

Pocket Wizard PlusX Auto Sensing Transeiver
The PocketWizard Plus X Transceiver is a versatile radio trigger that features a wealth of functionality within a simple-to-use and intuitive design. This transceiver offers 10 standard channels from which to use, and navigation between these channels is easily controlled by a backlit channel dial. These 10 channels are fully backward-compatible with all other PocketWizard radios and PocketWizard-enabled devices for maximum efficiency with existing radio setups. Contributing to its functional abilities, the Plus X also features intelligent Auto-Sensing technology, which allows the device to instantly fluctuate between transmitter and receiver duties. Auto-relay is also supported in order to promote a completely remote workflow.

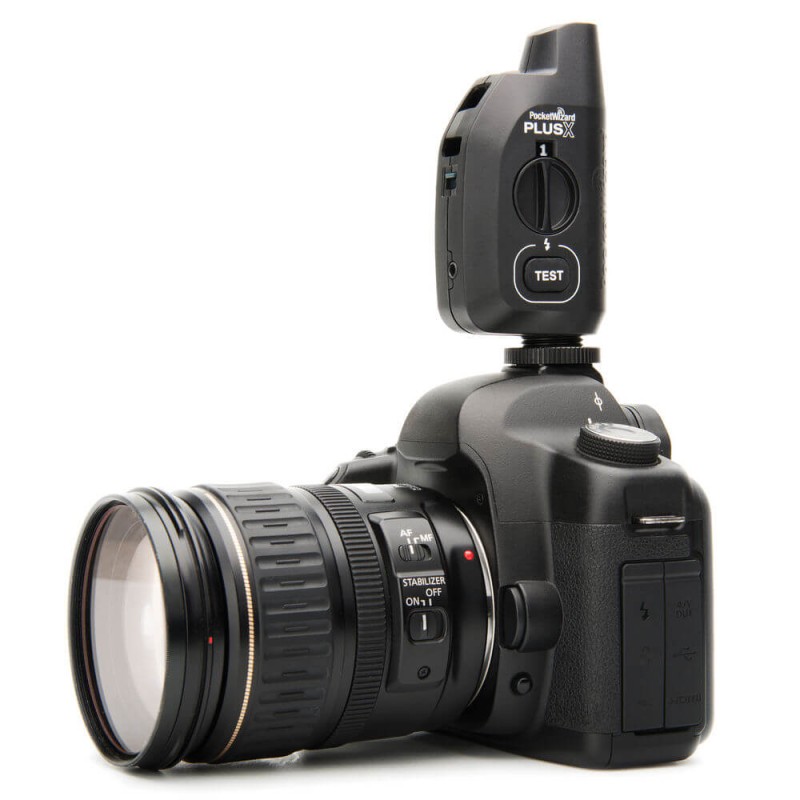

The Plus X design revolves around an internal antenna and side-profile design that contribute to overall durability and a streamlined appearance. This minimal design aesthetic is also benefitted by the simplified connection strategies that allow the radio to be fully functional when attached to a camera's hot shoe, without any cabled connections required. For attaching to remotes and external lights, a 3.5mm miniphone socket is available and three cables are included to offer an array of popular connection types.
| Frequency: | FCC/IC: 344.04 MHz North America CE: 433.62 MHz EU/Asia/Other |
| Channels: | 10 channels Reverse compatible with all PocketWizard radios using Standard channels using same frequency. |
| Zones: | Single zone |
| Antenna: | Precision tuned internal coil |
| Channel Setting: | Backlit rotating dial |
| Range: | Up to 500 meters (1600 feet). Actual range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference. |
| Sync Speed: | Up to 1/250 for focal plane shutters Up to 1/500 for leaf shutters |
| Triggering Speed: | Up to 14.5 frames per second (FPS) |
| Contact Time: | 62 milliseconds in normal operation |
| Status Indicator: | LED: Green, Amber, Red status indications Solid Red: Triggering signal sending or receiving Single Green Blink: Status OK, > 50% battery life Double Amber Blink: Battery life < 50% but > 25% Triple Red Blink: Battery life < 25%, change batteries |
| Transmit Output Power: | Less than 1 milliwatt (0.001 watt) |
| Power: | Two (2), AA (LR6), 1.5v alkaline recommended NiMH, NiCAD, NiZn, Lithium acceptable (these chemistries may not report battery life accurately) DO NOT USE 3.6V Li-Ion AA cells! |
| Battery Life: | Up to 100 hours (with alkaline batteries) |
| Max Port Sync Voltage: | 300 Volts (Camera/Flash Port) |
| Mac Current Handling: | 1.0 A peak, 0.2 A (1/5 Amp or 200 milliamp) continuous current limited |
| Voltage Present: | 3 volts, safe for use with all digital and film cameras |
| USB: | None |
| Housing: | High impact plastic with captive battery door |
| Mounting: | Hot shoe, lanyard/D-Ring loop, 1/4-20 threaded insert |
| Input/Output: | 3.5mm (1/8″) stereo miniphone jack, hot shoe |
| RoHS Compliant: | Yes |
| Unit Weight: | 3.9 ounces (110 grams) with batteries installed |
| Unit Dimensions: | Height: 4.2 inches (10.7 cm) Width: 2.1 inches (5.3 cm) Depth: 1.2 inches (3.0 cm) |
| Operating Temperature: | Above 5° F (-15° C) and below 120° F (50° C). |
| Storage Temperature: | Above -22° F (-30° C) and below 185° F (85° C) (without battery) |
| In the Box: | 1 Quick Guide 1 Stereo 3.mm (1/8″) miniphone to miniphone cable 1 Mono 3.5mm miniphone to locking PC cable 1 Stereo 3.5mm miniphone to 6.3mm (1/4″) adapter 1 Lanyard (single unit) or 2 Lanyards (2-pack) |
| Single Unit FCC: | Part #: PW-PLUSX-FCC Mfr ERP: 12165 UPC-A: 893577001958 |
| 2-Pack FCC: | Part #: PW-PLUSX-FCC-2 Mfr ERP: 12709 UPC-A: 85038605225 |
| Optional Accessories: | Isolation bar, trigger buttons, camera motor drive cables, PC cables and adapters, flash sync cables and protective case |
- EAN: 893577001965
- Brand: Pocket Wizard
- Product Code: PW-PLUSX
- Availability: In Stock
- €119.00
- Ex Tax: €96.75

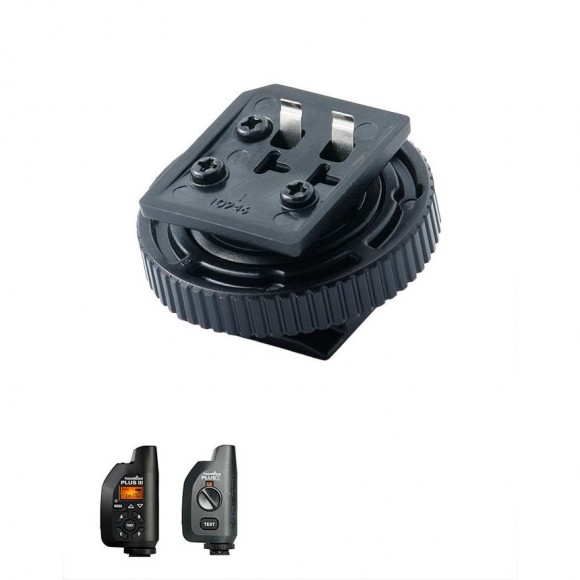

Pocket Wizard Hotshoe for Plus-X & III
