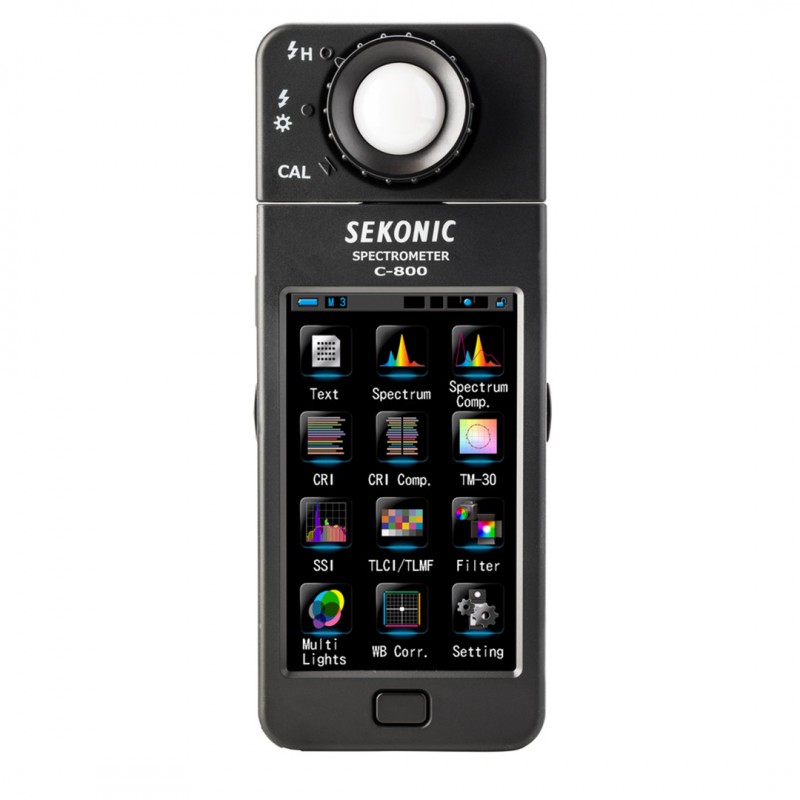

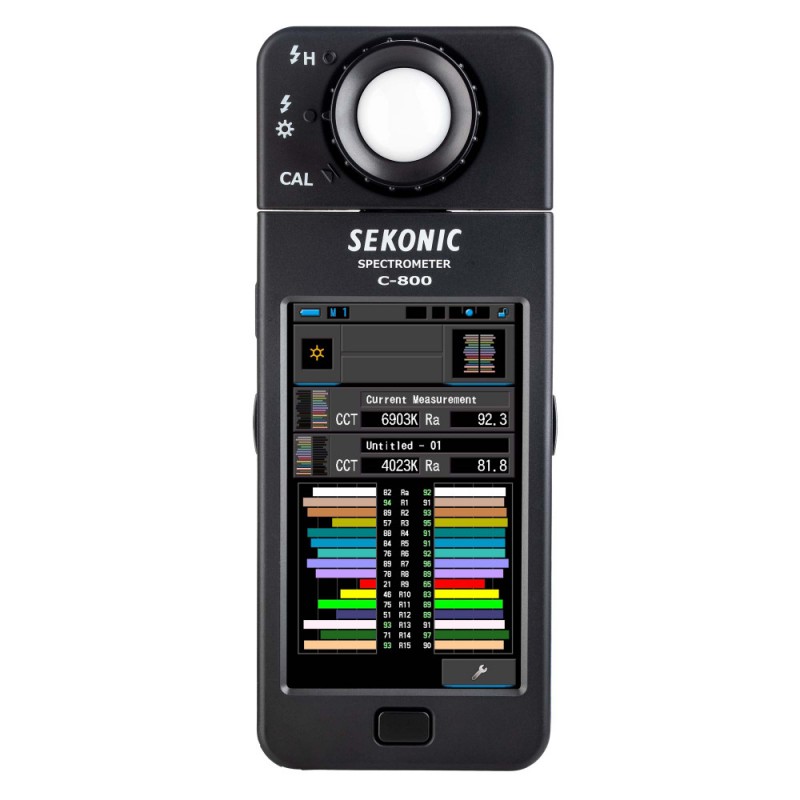

Sekonic C-800 SPECTROMETER Colour & Illuminance Meter

Click Image for Gallery

Description
Specifications

The Sekonic Spectrometer C-800 is a full-spectrum colour meter that can precisely measure every kind of light including LED HMI Fluorescent and electronic flash. Its high-resolution measuring system featuring CMOS sensor enables capturing spikes in light source output to provide unsurpassed colour measurement accuracy. Different than any spectrometer today the C-800's direct display of values for major light source and lens filter brands simplifies correcting and modifying light colour for cleaner recording and faster post process.

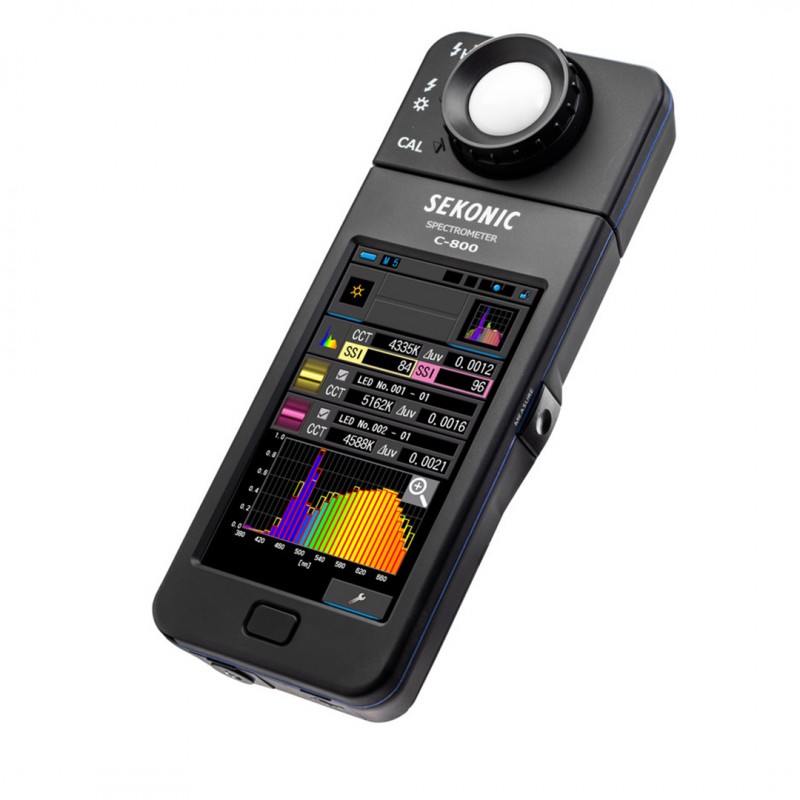

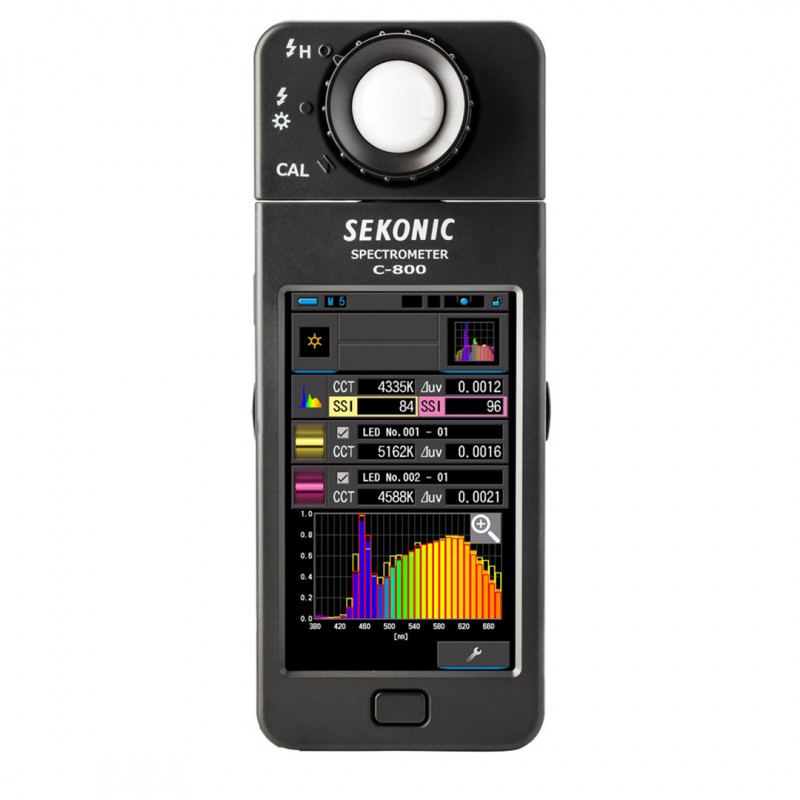

The New C-800 has CRI, TLCI, TLMF, TM-30-18, and CRI. Currently, the only meter to have SSI (Spectral Similarity Index) developed by the Academy of Motion Picture Arts and Science and Technology Council. Now you can compare and score lights based upon their spectral similarity.

With the C-800 matching the new generation of RGB, RGBW and RGBAW LED's has never been easier. The meter will give you any lights (x, y) values to measure precise chromaticity coordinates, and you can measure Hue and Saturation to get the best match from any RGB LEDs. Now matching your LEDs to any available light source, gelled or not, can now be done in seconds.

The enhancements to the new C-800 show the commitment and importance of end-user input and compatibility with new and growing trends in the colour control industry. The new Spectrometer C-800 will give filmmakers and photographers increased confidence with lights to render true to life skin tones and realistic colour, as well as match lights better than any other meter on the market. The C-800 will empower you to light better.

Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash, from 380 to 780nm
Wide measurement range of Colour Temperature (1,600 to 40,000K) and illuminance (1 to 200,000lx in ambient light, 20 to 20,500lx・s in flash light)
Conforms to Class A of JIS C 1609-1: 2006 as Illuminance meter class

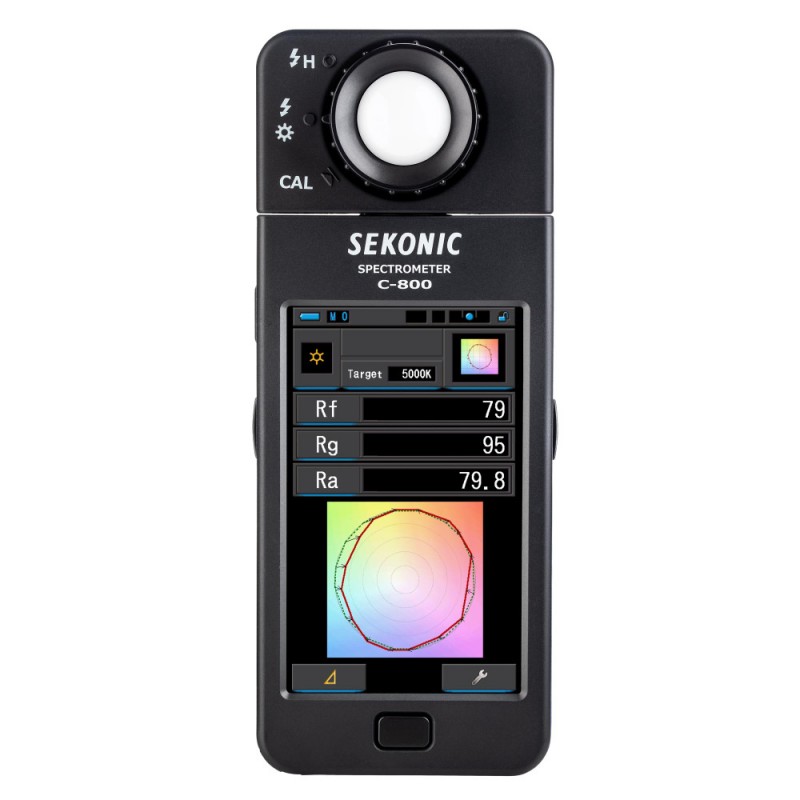

Expanded Colour Rendering Properties (CRI, SSI, TLCI, TLMF, TM-30-18)

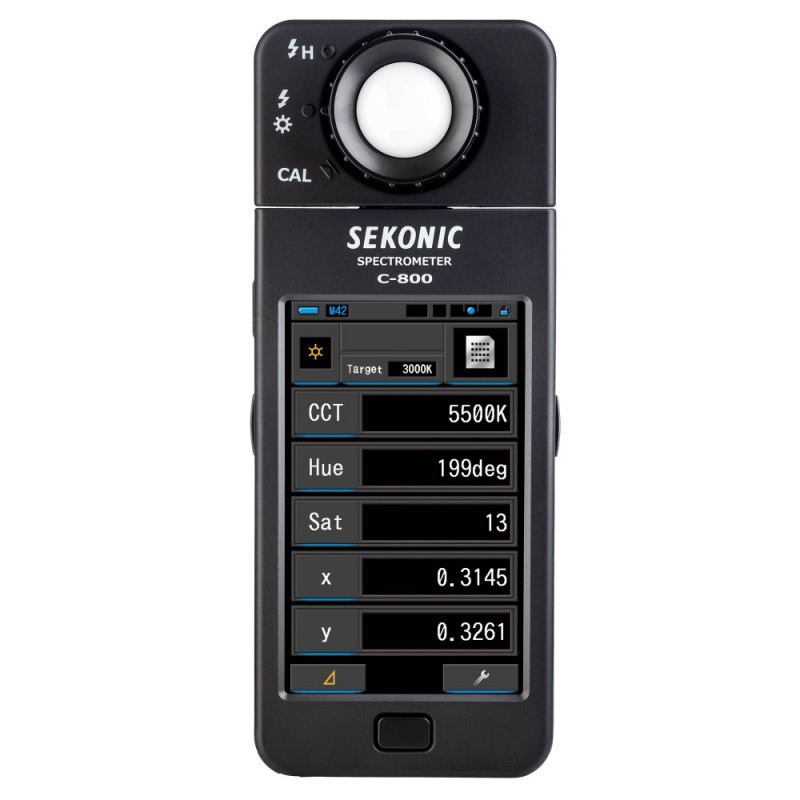

Extended Colour Control Parameters (Hue/Saturation, CIE 1931 x, y chromaticity coordinate)
Lighting Filter for RoscoⒸ and LEEⒸ, Camera Filter for Kodak WrattenⒸ , LEEⒸ and FujiⒸ, and LB/CC Index
Convenient Display Modes for photo/cinematography such as Multiple Lights and White Balance Correction
Up to 99 data measurements can be stored in memoryUser-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” colour touch panel LCD and Customize function
C-800 Series Utility Software (download from www.sekonic.com) offers easy settings in the meter and analysis of memorized data in a computer. (Memory title can be edited, Memorized value can be saved back and forth between computer and meter)

Sensor CMOS linear image sensor

Spectral interval of the wavelength 380nm to 780nm

Stop output of the wavelength 1nm

Measurement interval Ambient light (1 to 200,000lx=0.09 to 18,600fc)

Repeatability (Standard Illumination A) (xy=Standard Illuminant A: Illuminance: 1%+1 digit (30 to 200,000 lx), 5%+1 digit (1 to 30 lx) of displayed value

Characteristics of the relative spectral response in the visible domain (f) Within 9%

Cosine response (f2) Within 6%

Temperature influence (fT) Illuminance: ±5% of displayed value

Humidity influence (fH) Illuminance: ±3% of displayed value

Accuracy (Standard Illuminant: Illuminance: ±5%±1 (1 to 3,000 lx), ±7.5MK±1digit (3,000 to 200,000 lx) of displayed v CCT: ±4MK-1 (Standard Illuminant A, 800 lx)

Power AA (1.5V) x 2 pcs, USB bus power
