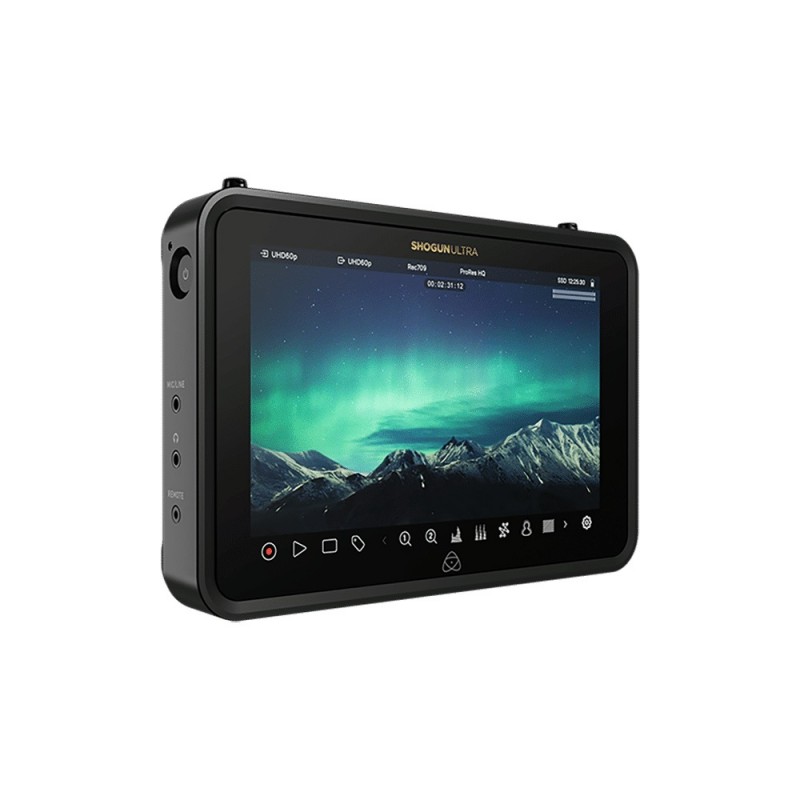

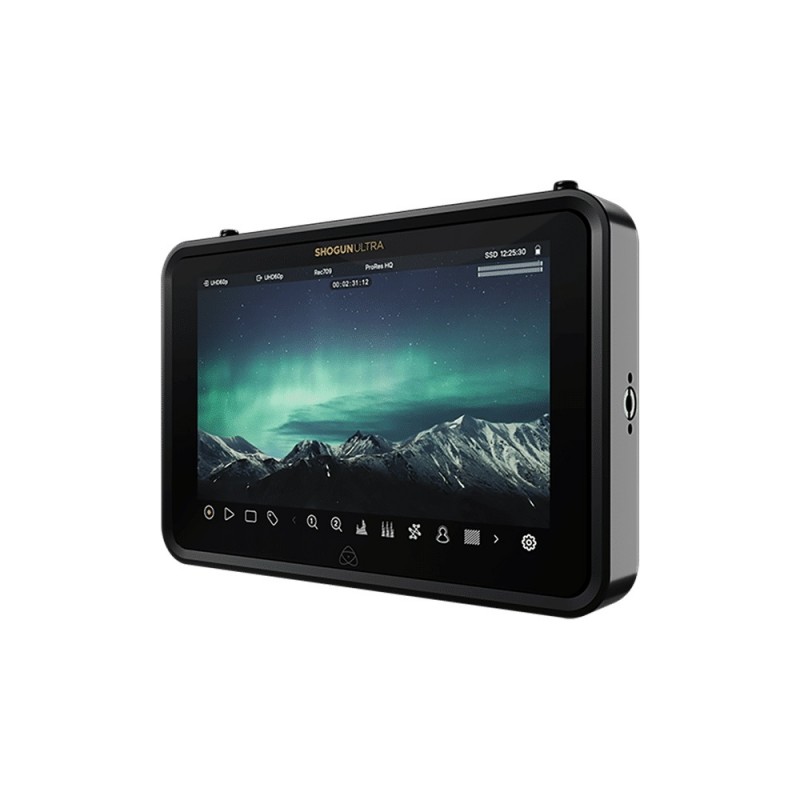

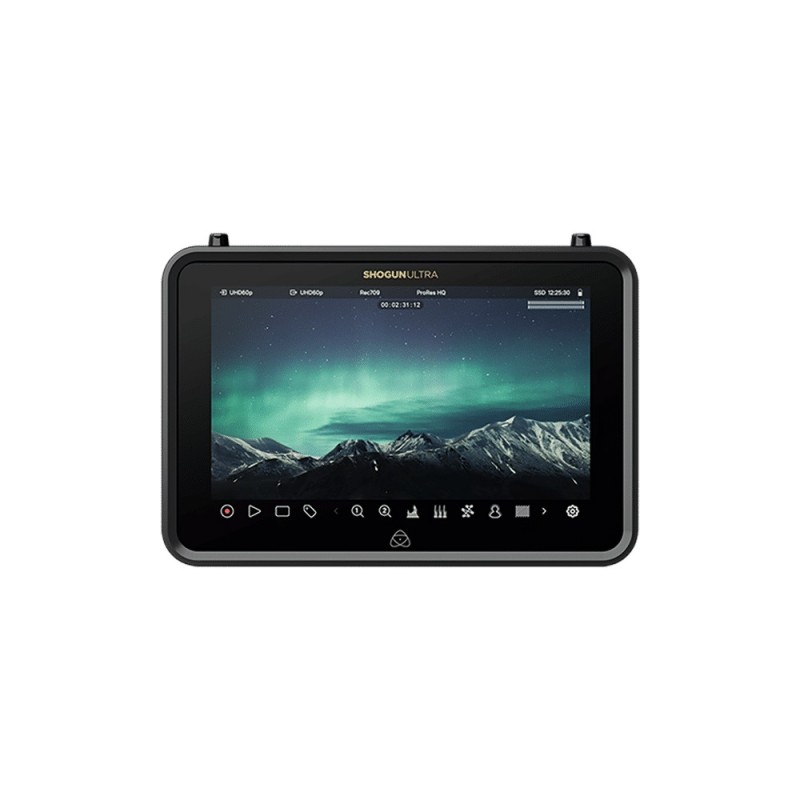

Atomos Shogun Ultra

Display

Panel Type      IPS-Type LCD

Display Size      7.0" / 17.8 cm

Native Resolution      1920 x 1200

Aspect Ratio      16:9

Touchscreen      Yes

Maximum Brightness      2000 nits / cd/m2

Colour Support      1.07 Billion Colours (10-Bit)

HDR Support      Yes, HDR10

Pixels Per Inch (ppi)      325 ppi

Colour Gamut      100% DCI-P3

                                     100% Rec. 2020

LUT Support      Yes

Image Controls      Anamorphic De-Squeeze, False Colour, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

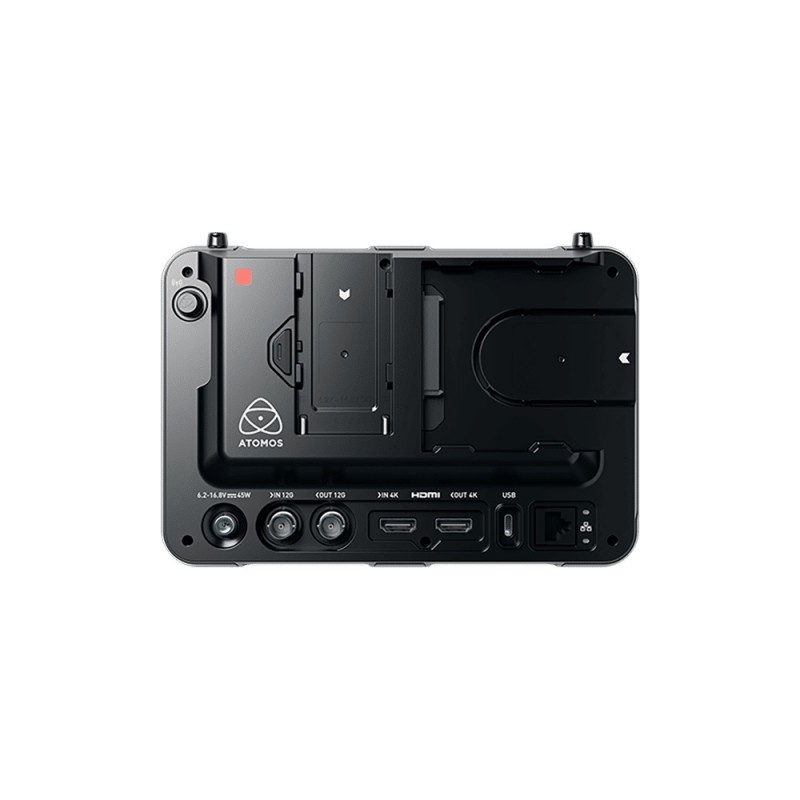

Inputs/Outputs

Video I/O      1x HDMI 2.0 Input

                             1x BNC (12G-SDI) Input

                             1x HDMI 2.0 Output

                             1x BNC (12G-SDI) Output

Embedded Audio      HDMI: 8-Channel

                                             SDI: 24-Channel

Audio I/O       1x 1/8" / 3.5 mm Headphone Output

                              1x 1/8" / 3.5 mm Input

                              1x 1/8" / 3.5 mm Output

Built-In Speaker      No

Power I/O      1x Barrel Input

Other I/O      1x 2.5 mm (LANC)

                             1x USB-C (Serial) Input

                             1x RJ45 (Gigabit Ethernet) Input

Media/Memory Card Slot      Single Slot: SSDmini/SSD with Master Caddy II/III

File System Support      exFAT

Wi-Fi      Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)

Bluetooth      Yes

Mobile App Compatible      Yes: Android & iOS

                                                     App Name: AtomRemote

                                                     Functionality: Adjust Settings, Setup

Format Support

Video Format      HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)

                                     8K Raw: 30

                                     6K Raw: 60/30

                                     4K Raw: 120

                                     DCI 4K: 60

                                    UHD 4K: 60

                                     DCI 2K: 60

                                     1080p: 120

                                     1080i: 60/50

                                     720p: 60

Gamma Curve      ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2

Video Signal Conversion      HDMI to SDI

                                                     SDI to HDMI

Timecode Support      Yes

Recording

Pulldown Conversion      No

Camera Trigger      SDI, HDMI

Pre-Roll Record      No

Encoding Formats      x

                                            DNxHD

                                            H.265

                                            ProRes

Metadata Tagging      Yes

Phantom Power      No

Power

Input Power      6.2 to 16.8 VDC

Built-In Battery      No

Battery Type      1x L-Series

Mounting

Mounting      3x 1/4"-20 Female

                             3x 3/8"-16 Female

General

Material of Construction      Aluminium, Polycarbonate

Dimensions      198 x 133 x 40 mm

Weight      730.00 g

Atomos 7" Shogun Ultra Monitor-Recorder

USB-C PD to DC Adapter Cable

AtomX SSDmini Handle

MasterCaddy III

RF Antenna

2 x Wi-Fi Antenna with Black Cap

5 x Coloured Antenna Cap

3 x Antenna Mount Cover

3.5mm Audio Jack Cable
