Desview R5ii 5.5in On-Camera Monitor
The R5II 5.5" On-Camera Touch Monitor from Desview is a lightweight and portable on-camera monitor boasting a bright 800 cd/m² display with a 178° viewing angle and a screen resolution of 1920 x 1080. Packed with useful tools and features, including touchscreen and pinch-to-zoom, the R5II has an HDMI input that handles up to DCI 4K24 and an HDMI loop out. It also offers a 3.5mm headphone jack and a USB input for loading custom 3D LUTs using the supplied USB thumb drive.

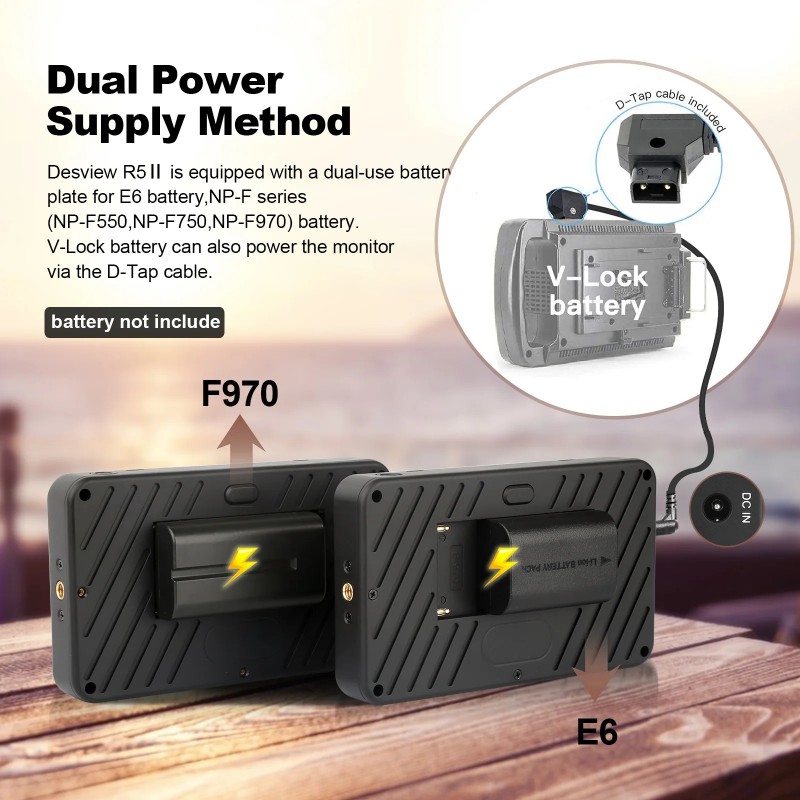

- HDR support includes HGL and PQ modes, and multiple ratio anamorphic options include 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x de-squeeze functions. A dual-purpose battery slot on the rear of the panel allows you to choose between using Sony NP-F style or Canon LP-E6 batteries.
- Features at a Glance
- Daylight-viewable, 5.5" touchscreen on-camera monitor with 800 cd/m² brightness.
- Slim, lightweight design with touchscreen IPS LCD panel.
- HDMI supports video input up to DCI/UHD 4K30.
- Two 1/4"-20 mounting threads on the side and bottom of the monitor.

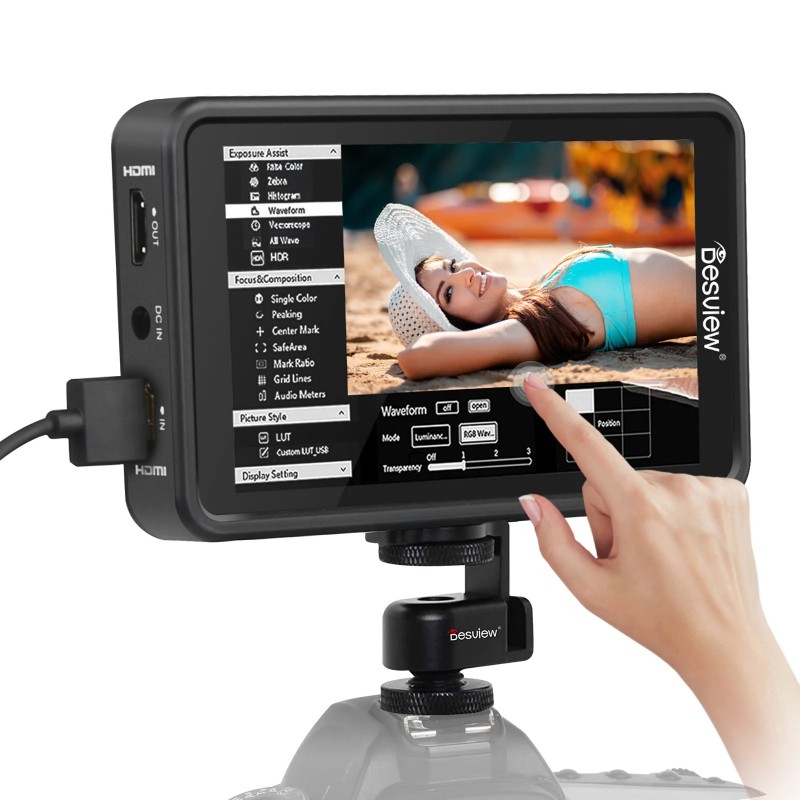

- Touchscreen
The 5.5" touchscreen panel features 1920 x 1080 resolution and a 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch-to-zoom, which helps check every corner and detail of the image.
The 800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.
Display Tools
Pixel pinch-zoom
Aspect ratios: Preset and customizable
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist, with adjustable style and intensity
Peaking, with adjustable intensity
False color
Zebra, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB

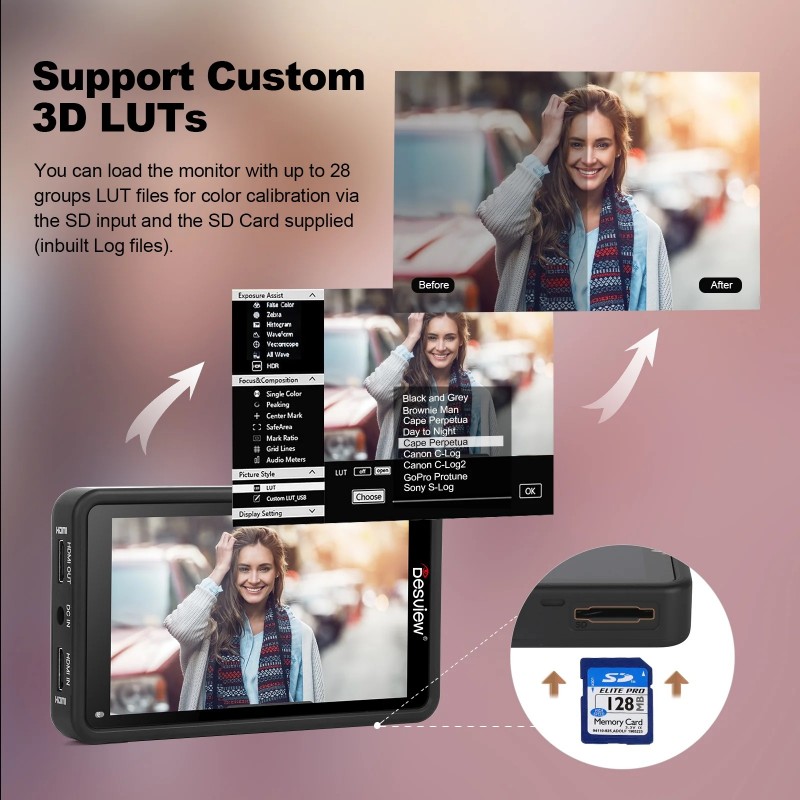

LUT import via USB storage device
Audio meter display
Display
Panel Type IPS-Type LCD
Display Size 5.5" / 14.0 cm
Screen Area 120.96 x 68.04 mm
Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle 178°
Touchscreen Yes
Maximum Brightness 800 nits / cd/m2
Contrast Ratio 1000:1
Dot Pitch 0.021 x 0.063 mm
Bit Depth / Colour Support 8-Bit (16.7 Million Colours)
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 401 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, False Colour, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Split - Half, Vectorscope, Waveform, Zebra

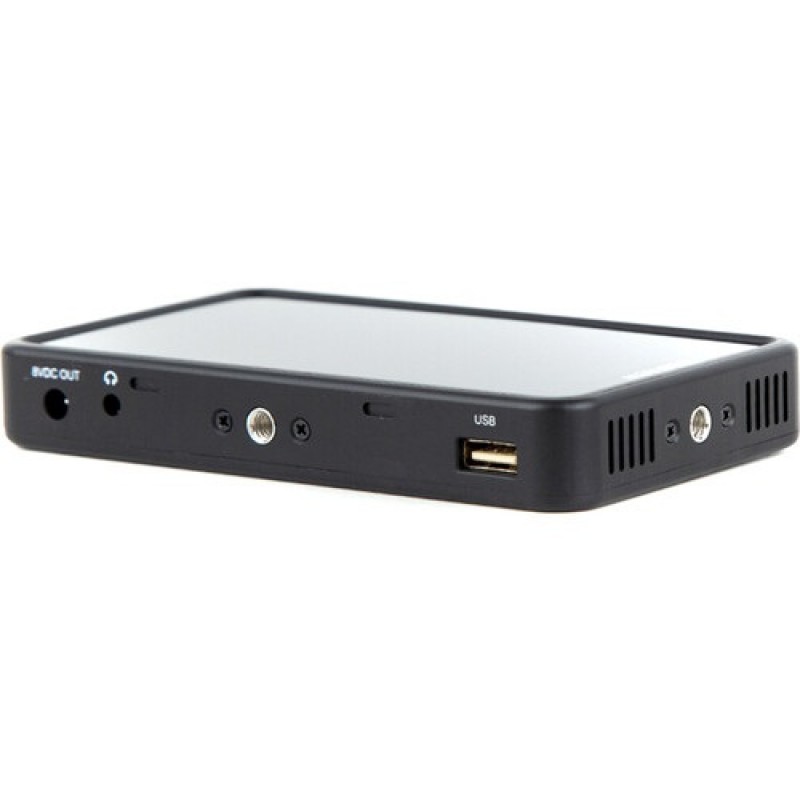

Inputs / Outputs
Video I/O 1x HDMI 1.4 Input
1x HDMI 1.4 Loop Output
Audio I/O 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 1
Power I/O 1x Barrel 2.1 mm (24 VDC) Input
1x Barrel 2.1 mm (8 VDC) Output
Other I/O 1x USB-A 2.0 Input
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
Power
DC Input Power 7 to 24 VDC
Battery Type 1x LP-E6, L-Series
Power Consumption 9 W (Maximum)
0.1 W (Standby)
Mounting
Mounting 2x 1/4"-20 Female
General
Dimensions 151.4 x 89.1 x 22 mm
Weight 200 g
Desview R5II 5.5" On-Camera Touch Monitor
Micro-HDMI Cable
Mini HDMI Cable

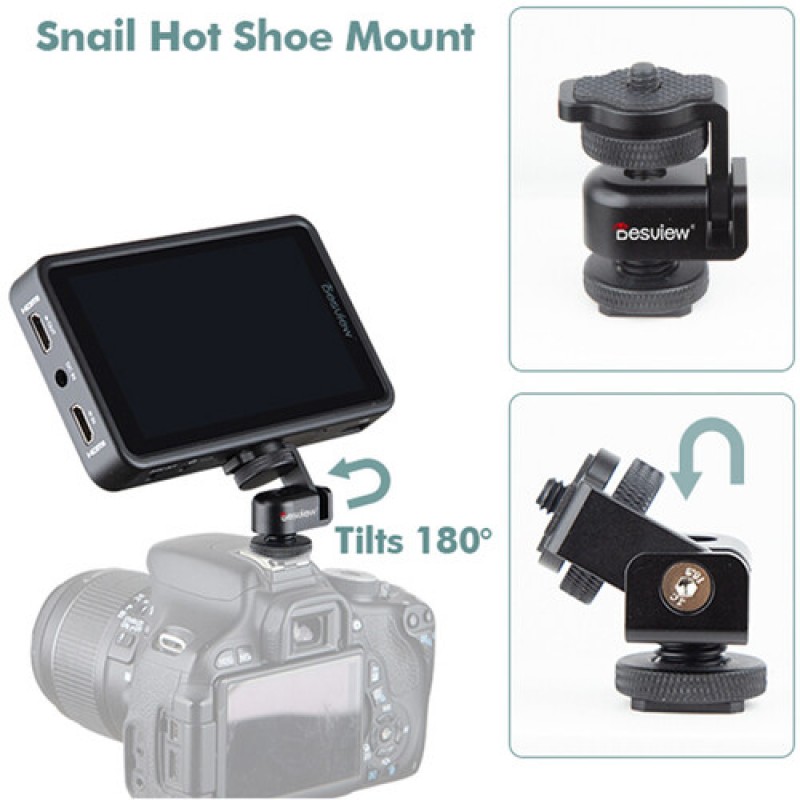

Snail Cold Shoe
USB Thumb Drive
Sun Hood
Sun Shield
Microfiber Cloth
Limited 1-Year Manufacturer Warranty
- EAN: 6970602270894
- Brand: Desview
- Product Code: DES-R5II
- Availability: In Stock
- €239.00
- Ex Tax: €194.31
